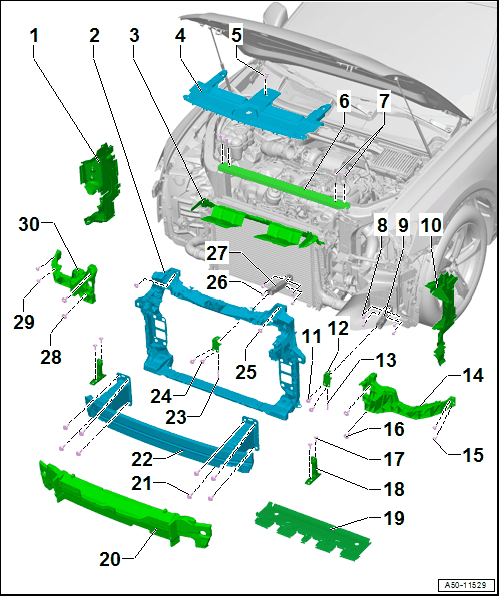

Overview - Lock Carrier
- Air Duct
- Right
- Lock Carrier
- Removing and installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
- Air Duct
- Upper
- Lock Carrier Cover
- Removing and installing. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
- Expanding Rivet
- Quantity: 5
- Reinforcement Brace
- Removing and installing. Refer to REINFORCEMENT BRACE, REMOVING AND INSTALLING .
- Bolt
- 10 Nm
- Quantity: 4
- Bolt
- 10 Nm
- Quantity: 4
- Lower Longitudinal Member
- Left
- Removing and installing. Refer to LOWER LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Air Duct
- Left
- Bolt
- 23 Nm
- Quantity: 2
- Bracket
- For the lower longitudinal member
- Removing and installing. Refer to LOWER LONGITUDINAL MEMBER BRACKET, REMOVING AND INSTALLING .
- Bolt
- 25 Nm
- Mount
- Left
- For the headlamp
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to OVERVIEW - HEADLAMPS .
- Quantity: 2
- Bolt
- Tightening specification. Refer to OVERVIEW - HEADLAMPS .
- Quantity: 2
- Bolt
- 8 Nm
- Quantity: 4
- Support
- For headlamp mount
- Removing and installing. Refer to HEADLAMP MOUNT SUPPORT, REMOVING AND INSTALLING .
- Air Duct
- Lower
- Molded Foam Part
- Removing and installing. Refer to MOLDED FOAM PART, REMOVING AND INSTALLING .
- Bolt
- 60 Nm
- Quantity: 8
- Impact Member
- Removing and installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING .
- Bolt
- 25 Nm
- Bolt
- 23 Nm
- Quantity: 2
- Bolt
- 8 Nm
- Bolt
- 10 Nm
- Quantity: 4
- Lower Longitudinal Member
- Right
- Removing and installing. Refer to LOWER LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to OVERVIEW - HEADLAMPS .
- Quantity: 2
- Bolt
- Tightening specification. Refer to OVERVIEW - HEADLAMPS .
- Quantity: 2
- Mount
- Right
- For the headlamp
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING .
