Component Location Overview - Seat Belts And Mounting Points

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

Courtesy of AUDI

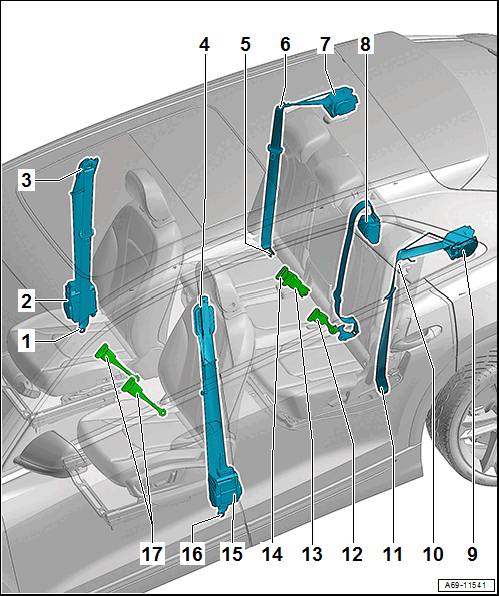

Front Belt End Fitting
- Right
- Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT
Automatic Belt Retractor
- For the right front three-point seat belt
- With
  - Front Passenger Seat Belt Tensioner Igniter 1 -N154-
  - Front Passenger Belt Force Limiter -G552-
  - Equipped on some models: Right Front Seat Belt Tensioner Control Module -J855-
  - Market-specific: Front Passenger Seat Belt Tensioner Igniter 2 -N298-
- Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT
Belt Height Adjuster/Front Seat Belt Guide
- Right
- Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT
Belt Height Adjuster/Front Seat Belt Guide
- Left
- Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT
Outer Rear Belt End Fitting
- Right
- Refer to OUTER REAR BELT END FITTING, REMOVING AND INSTALLING
Seat Belt Guide
- Right
- Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT
Automatic Belt Retractor
- For the right rear three-point seat belt
- With
  - Passenger Side Rear Seat Belt Tensioner Igniter -N197-
  - Equipped on some models: Right Rear Seat Belt Tensioner Control Module -J1098-
- Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT
Automatic Belt Retractor
- For the rear three-point seat belt in the center
- Refer to OVERVIEW - CENTER REAR THREE-POINT SEAT BELT
Automatic Belt Retractor
- For the left rear three-point seat belt
- With
  - Driver Side Rear Seat Belt Tensioner Igniter -N196-
  - Equipped on some models Left Rear Seat Belt Tensioner Control Module -J1097-
- Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT
Seat Belt Guide
- Left
- Refer to OVERVIEW - OUTER REAR THREE-POINT SEAT BELT
Outer Rear Belt End Fitting
- Left
- Refer to OUTER REAR BELT END FITTING, REMOVING AND INSTALLING
Left Rear Seat Belt Latch
- With Driver Side Second Row Seat Belt Switch -F390-
- Refer to OVERVIEW - REAR SEAT BELT LATCH
Center Rear Seat Belt Latch
- With Center Second Row Seat Belt Switch -F391-
- Equipment versions 2+1 divided seats
- Refer to OVERVIEW - REAR SEAT BELT LATCH
Right Rear Seat Belt Latch
- With Passenger Side Second Row Seat Belt Switch -F392-
- Refer to OVERVIEW - REAR SEAT BELT LATCH
Automatic Belt Retractor
- For the left front three-point seat belt
- With
  - Driver Seat Belt Tensioner Igniter 1 -N153-
  - Driver Belt Force Limiter -G551-
  - Equipped on some models Left Front Seat Belt Tensioner Control Module -J854-
- Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT
Front Belt End Fitting
- Left
- Refer to OVERVIEW - FRONT THREE-POINT SEAT BELT
Front Seat Belt Latch
- With
  - Driver Seat Belt Switch -E24-
  - Front Passenger Seat Belt Switch -E25-
- Refer to OVERVIEW - FRONT SEAT BELT LATCH
