Overview - Front Seat Belt Latch

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

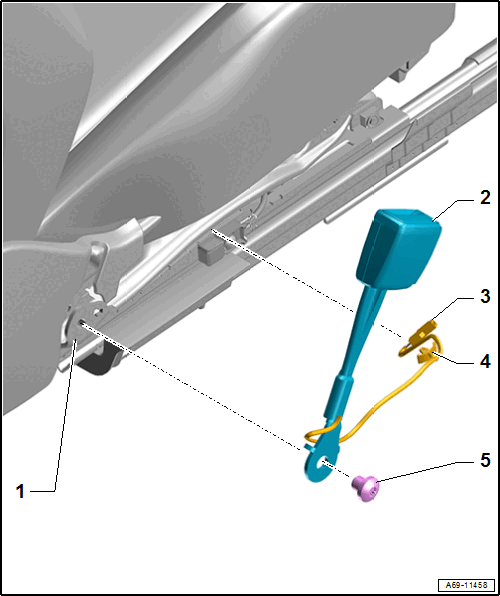

Fig 1: Exploded View Of Front Seat Belt Latch

Courtesy of AUDI

Front Seat
Front Seat Belt Latch
- With
  - Driver Seat Belt Switch -E24-
  - Front Passenger Seat Belt Switch -E25-
- Replace the seat belt latch if the belt tensioner has deployed with the belt buckled
- Refer to FRONT SEAT BELT LATCH, REMOVING AND INSTALLING
Connector
- For
  - Driver Seat Belt Switch -E24-
  - Front Passenger Seat Belt Switch -E25-
Cable Holder
- Clip into the seat pan
Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
