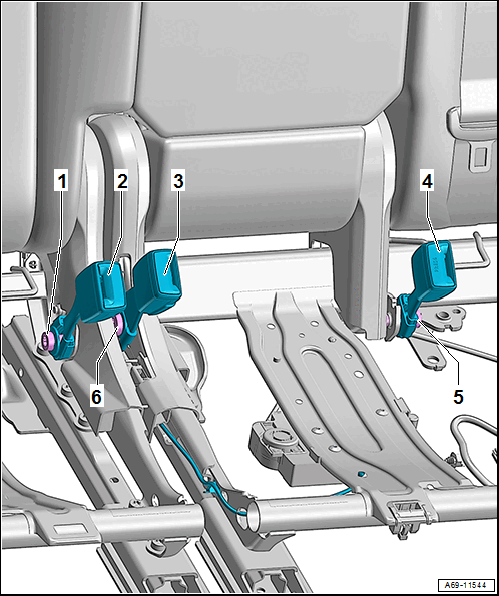

Overview - Rear Seat Belt Latch
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 40 Nm
- Right Rear Seat Belt Latch
- With Passenger Side Second Row Seat Belt Switch -F392-
- Always replace if the belt tensioner has deployed when the belt is buckled
- Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING
- Center Seat Belt Latch
- With Center Second Row Seat Belt Switch -F391-
- Always replace if the belt tensioner has deployed when the belt is buckled
- Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING
- Left Rear Seat Belt Latch
- With Driver Side Second Row Seat Belt Switch -F390-
- Always replace if the belt tensioner has deployed when the belt is buckled
- Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING
- Bolt
- 40 Nm
- Bolt
- 40 Nm
