Overview - Center Rear Three-Point Seat Belt

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

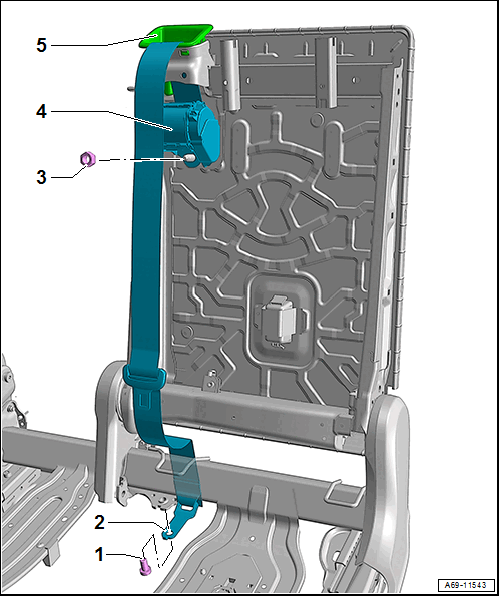

Fig 1: Exploded View Of Center Rear Three-Point Seat Belt

Courtesy of AUDI

Bolt
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Belt End Fitting
- Refer to REAR SEAT BELT ANCHOR IN CENTER SEATING POSITION, REMOVING AND INSTALLING
Nut
- 40 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Automatic Belt Retractor
- Refer to REAR THREE POINT SEAT BELT IN CENTER, REMOVING AND INSTALLING
Seat Belt Guide Trim
- Replace the entire seat belt guide if damaged
- Refer to REAR SEAT BELT GUIDE, REMOVING AND INSTALLING
