Overview - Outer Rear Three-Point Seat Belt

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

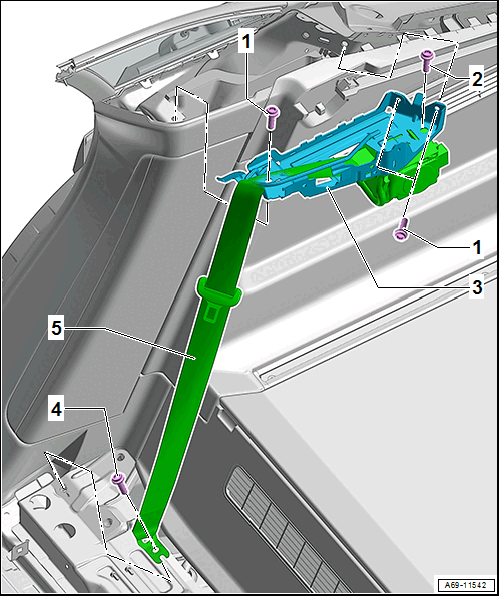

Fig 1: Exploded View Of Outer Rear Three-Point Seat Belt
GWWA69-11542Courtesy of AUDI
  1. Bolt
    • 20 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  2. Bolt
    • 40 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  3. Seat Belt Guide
  4. Bolt
    • 40 Nm
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
  5. Belt with Automatic Belt Retractor
    • Installed depending on vehicle equipment
    • With
      • Driver Side Rear Seat Belt Tensioner Igniter -N196-
      • Passenger Side Rear Seat Belt Tensioner Igniter -N197-
      • Left Rear Seat Belt Tensioner Control Module -J1097-
      • Right Rear Seat Belt Tensioner Control Module -J1098-
    • The Left Rear Seat Belt Tensioner Control Module -J1097- / Right Rear Seat Belt Tensioner Control Module -J1098- must be adapted after replacing the automatic belt retractors using the Vehicle Diagnostic Tester.
    • Refer to OUTER REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING
