Component Location Overview - Airbag System

WARNING: This page is about a different variant/trim than selected.
NOTE:

The airbag system for the TT Coupe is illustrated.

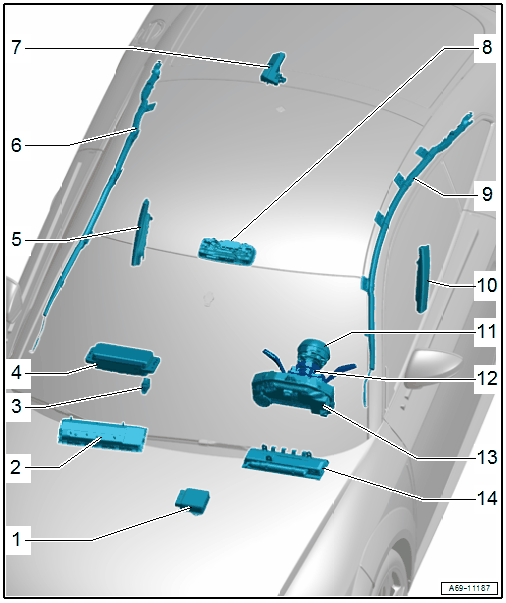

GWWA69-11187Courtesy of AUDI OF AMERICA, LLC
  1. Airbag Control Module -J234-
  2. Passenger Side Knee Airbag
  3. Front Passenger Airbag Deactivation Key Switch -E224-
    • Not for North American market.
  4. Front Passenger Airbag
    • With Front Passenger Airbag Igniter 1 -N131-
    • Market-specific for North America: Front Passenger Airbag Unit -NX3- with Front Passenger Airbag Igniter 1 -N131-, Front Passenger Airbag Igniter 2 -N132- and Front Passenger Airbag Release Valve Igniter -N491-
    • Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
  5. Thorax Airbag on Front Passenger Side
  6. Front Passenger Head Curtain Airbag
  7. Battery Interrupt Igniter -N253-
  8. Front Passenger Airbag - Disabled - Indicator Lamp -K145-
  9. Driver Head Curtain Airbag
  10. Thorax Airbag on Driver Side
  11. Driver Side Airbag
    • With Driver Airbag Igniter -N95-
    • Market-specific for North America with Driver Airbag Release Valve Igniter -N490-
    • Overview. Refer to OVERVIEW - DRIVER SIDE AIRBAG .
  12. Steering Column Electronics Control Module -J527-
  13. Airbag Indicator Lamp -K75-
    • Integrated in the instrument cluster.
    • Cannot be replaced separately
    • Instrument Cluster, removing and installing. Refer to OVERVIEW - INSTRUMENT CLUSTER .
  14. Driver Side Knee Airbag
