Overview - Battery Interrupt Igniter

WARNING: This page is about a different variant/trim than selected.

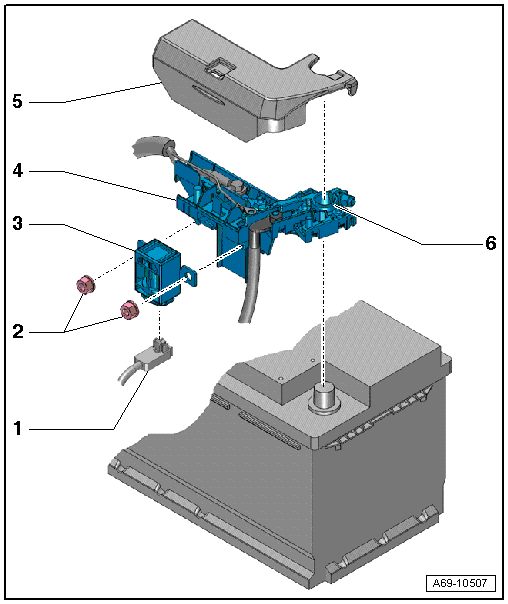

Fig 1: Exploded View Of Battery Interrupt Igniter Components Location

Courtesy of AUDI OF AMERICA, LLC

Connector
- For the Battery Interrupt Igniter -N253-
- Releasing and removing. Refer to Removing - Open the connector lock -5- using a small screwdriver and disconnect the connector -1-. .
Nuts
- 15 Nm
Battery Interrupt Igniter -N253-
- Removing and Installing. Refer to BATTERY INTERRUPT IGNITER, REMOVING AND INSTALLING .
Fuse Panel A -SA-
Cover
- For Fuse Panel A -SA-
Positive Terminal Clamp
- Tightening specification. Refer to OVERVIEW - BATTERY .
