Overview - Front Side Airbag

WARNING: This page is about a different variant/trim than selected.

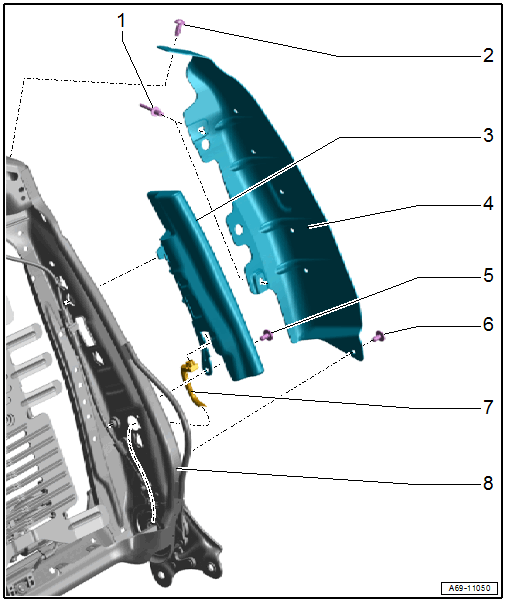

Fig 1: Exploded View Of Front Side Airbag
GWWA69-11050Courtesy of AUDI OF AMERICA, LLC
  1. Rivet
    • Quantity: 2
  2. Bolt
    • 5 Nm
    • Replace after removing.
    • Not available separately. Refer to the Parts Information for the repair kit.
  3. Front Side Airbag
  4. Thorax Airbag Guide Plate
  5. Bolt
    • 8 Nm
    • Replace after removing
    • Clean the threaded hole for the bolt with for example a thread tap.
    • Install with locking compound. Refer to the Parts Information for the locking compound.
  6. Bolt
    • 6.5 Nm
    • Replace after removing.
    • Not available separately. Refer to the Parts Information for the repair kit.
    • The inner threaded plate in the backrest frame can loosen and fall
  7. Wire
  8. Backrest Frame
