Overview - Knee Airbag, Front Passenger Side

WARNING: This page is about a different variant/trim than selected.

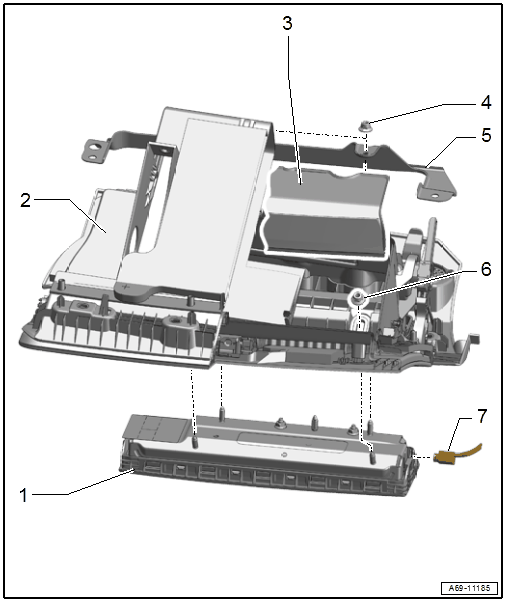

Fig 1: Exploded View Of Knee Airbag, Front Passenger Side

Courtesy of AUDI OF AMERICA, LLC

Front Passenger Knee Airbag Igniter -N296-
- Removing and installing. Refer to PASSENGER SIDE KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
  CAUTION:
  There is a risk of causing damage to the surface of the knee airbag due to mechanical stress.
  - After performing work visually inspect that the surface of the knee airbag is undamaged.
Glove Compartment
- Allocation. Refer to the Parts Information.
- Removing and installing. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
Liner Mat
- For the glove compartment
Nut
- 8 Nm
- Replace after removing
- Quantity: 2
Bracket
- For the knee airbag
  CAUTION:
  There is a risk of malfunctions do to a faulty ground connection.
  - The counter threaded and contact surface must be free of paint, coating, and corrosion, the threaded connection serves as the ground connection for the knee airbag.
Nut
- 8 Nm
- Replace after removing
- Quantity: 2
Connector
- For Front Passenger Knee Airbag Igniter -N296-
