Overview - Instrument Panel

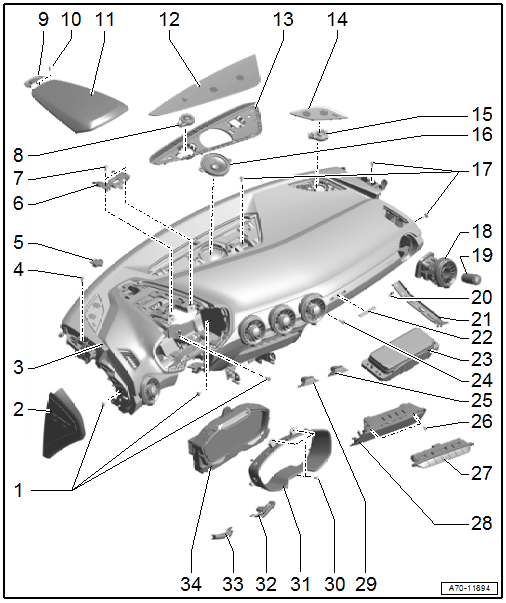

Fig 1: Exploded View Of Instrument Panel

Courtesy of AUDI OF AMERICA, LLC

Bolts
- 3 Nm
Instrument Panel Side Cover
- Removing and installing. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
- Press on until it engages audibly
Instrument Panel
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS FOR PYROTECHNIC COMPONENTS .
- Follow the allocation of the airbag to the instrument panel. Refer to the Parts Information.
- Removing and installing. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
Bolt
- 3 Nm
Rubber Buffer
- Pushed on the instrument panel mount under the windshield frame
- Quantity: 2
Instrument Panel Reinforcement
- Removing and installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
Bolt
- 3 Nm
- Quantity: 2
Center Speaker
- Component location overview. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .
Cap
- Removing and installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
- Press on it until it locks
Bolt
- 1.5 Nm
Instrument Cluster Instrument Panel Lid
- Removing and installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
- Press on it until it locks
Speaker in Center Trim
- Removing and installing. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
Front Center Defroster Vent
- Removing and installing. Refer to FRONT CENTER DEFROSTER VENT, REMOVING AND INSTALLING .
- Press on it until it locks
Outer Speaker Trim
- Removing and installing. Refer to SPEAKER TRIM, REMOVING AND INSTALLING .
- Press on until it engages audibly
Front Treble Speaker
- Component location overview. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .
Center Speaker
- Component location overview. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .
Screws
- 3 Nm
Instrument Panel Vent
- Removing and installing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Press on it until it locks
- Quantity: 5
Right Seat Heating Button -E654-
- Integrated in the Front A/C Display Control Head 5 -E778-
- Component location overview. Refer to OVERVIEW - DISPLAY CONTROL HEAD .
Bolt
- 9 Nm
- Quantity: 4
Support
- Removing and installing. Refer to INSTRUMENT PANEL SUPPORT, REMOVING AND INSTALLING .
- Quantity: 2
Instrument Panel Decorative Trim
- Removing and installing. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
- Press on it until it locks
Front Passenger Airbag
WARNING:
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS FOR PYROTECHNIC COMPONENTS .
- Follow the allocation of the airbag to the instrument panel. Refer to the Parts Information.
- Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
Bolt
- 3 Nm
Rear Window Defogger Button -E230-
- Component location overview. Refer to OVERVIEW - DISPLAY CONTROL HEAD .
Bolt
- 3 Nm
- Quantity: 2
Switch Module in Instrument Panel, Center -EX22-
- With:
  - Emergency Flasher Button -E229-
  - ASR/ESP Button -E256-
  - Parking Aid Button -E266-
  - Front Display Open/Close Button -E462-
  - Parallel Parking Assistance Button -E581-
  - Driving Profile Selection Switch Module -E592-
  - Start/Stop Mode Button -E693-
  - Front Passenger Airbag -Disabled- Indicator Lamp -K145-
  - Rear Spoiler Adjustment Switch -E127-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL CONTROLS .
Trim
- For the Switch Module in Instrument Panel, Center -EX22-
- Removing and installing. Refer to BUTTON UNIT TRIM, REMOVING AND INSTALLING .
Fresh Air and Recirculating Air Mode Button -E781- /Defrost Button -E782-
- Component location overview. Refer to OVERVIEW - DISPLAY CONTROL HEAD .
Bolt
- 3 Nm
- Quantity: 3
Instrument Cluster Trim
- Removing and installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
Instrument Cluster Operation Button -E493-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL CONTROLS .
Instrument Panel Trim
Instrument Cluster
- Overview. Refer to OVERVIEW - INSTRUMENT CLUSTER .
