Speaker Trim, Removing And Installing

Special tools and workshop equipment required

• Wedge Set:T10383

Removing the Exterior Speaker Trim:

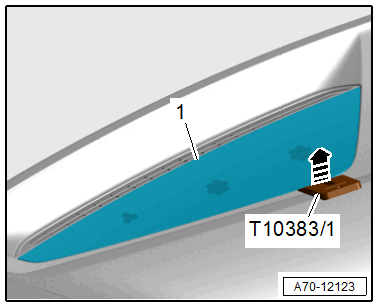

Fig 1: Outer Speaker Trim

Courtesy of AUDI OF AMERICA, LLC

-- Carefully detach the speaker trim -1- using the :T10383/1  along the seam in direction of -arrow-, to do this push the wedge approximately 2 mm in the seam under the speaker trim.

Removing the Center Speaker Trim:

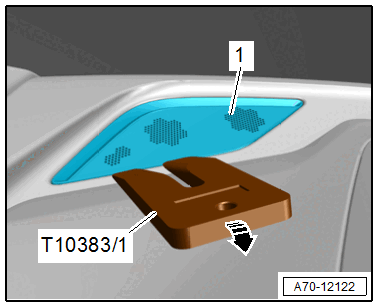

Fig 2: Speaker Trim

Courtesy of AUDI OF AMERICA, LLC

-- Carefully detach the speaker trim -1- using the :T10383/1  along the seam in direction of -arrow-, to do this push the wedge approximately 2 mm in the seam under the speaker trim.

-- Insert a long screwdriver under the speaker trim at the front, and detach the front clips.

Installing

Install in reverse order of removal.
