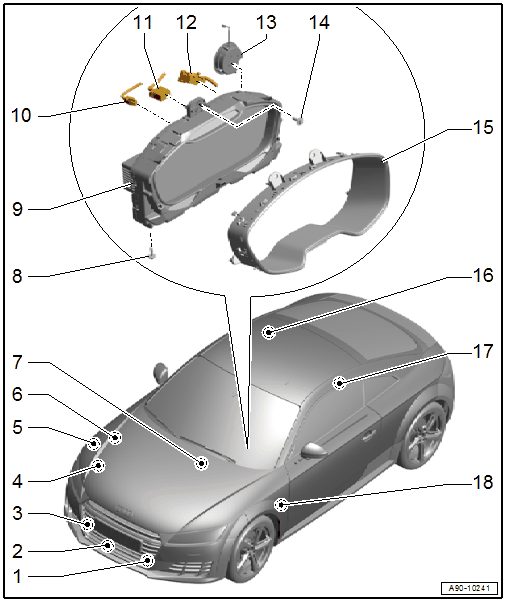

Overview - Instrument Cluster
- Outside Air Temperature Sensor -G17-
- Removing and installing. Refer to Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING
- Oil Level Thermal Sensor -G266-
- Overview. Refer to Oil Level Thermal Sensor -G266-, REMOVING AND INSTALLING .
- Engine Coolant Temperature Sensor
- Allocation and overview. Refer to Engine Coolant Temperature Sensor -G62-, REMOVING AND INSTALLING .
- Oil Pressure Switch
- Allocation and overview. Refer to [For engine(s) CNTC, CYFB] Oil Filter/Oil Pressure Switch .
- Right Front Brake Pad Wear Sensor -G35-
- Integrated in the brake pad. Cannot be replaced separately if faulty.
- Front brake pads, removing and installing. Refer to BRAKE PADS, REMOVING AND INSTALLING, TTRS AND CERAMIC BRAKES .
- Engine Coolant Level Warning Switch -F66-
- Brake Fluid Level Warning Switch -F34-
- Integrated in the brake fluid reservoir, cannot be replaced separately if faulty.
- Brake fluid reservoir, removing and installing. Refer to BRAKE FLUID RESERVOIR, REMOVING AND INSTALLING .
- Screw
- 2.5 Nm
- Quantity: 2
- Instrument Cluster
- With Instrument Cluster Control Module -J285-
- Do not disassemble
- The instrument cluster must be replaced if there is a malfunction.
- Removing and installing. Refer to INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING .
- Antenna Wire
- Fiber-Optic Cable Connector
- Seal with Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9
- Connector
- For the instrument cluster
- Multi-pin connector pin assignment. Refer to appropriate service information.
- Speaker
- For the instrument cluster
- Not available separately
- Bolt
- 2.5 Nm
- Instrument Cluster Trim
- Removing and installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
- Fuel Level Sensor -G-
- Overview. Refer to OVERVIEW - FUEL DELIVERY UNIT/FUEL LEVEL SENSOR .
- Fuel Level Sensor 2 -G169-
- Only vehicles with quattro drive
- Overview. Refer to OVERVIEW - FUEL DELIVERY UNIT/FUEL LEVEL SENSOR .
- Windshield Washer Fluid Level Sensor -G33-
- Depending on vehicle equipment, it is integrated in the washer fluid reservoir or can replaced separately
- Washer fluid reservoir, removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Windshield Washer Fluid Level Sensor -G33-, removing and installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
