Component Location Overview - Instrument Panel Controls

Courtesy of AUDI OF AMERICA, LLC

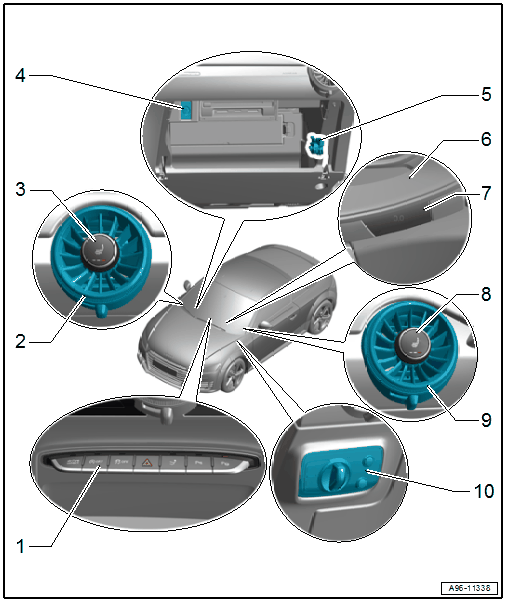

1. Switch Module in Instrument Panel, Center -EX22-
   • The following components are integrated in a single component
     • Emergency Flasher Button -E229-
     • ASR/ESP Button -E256-
     • Parking Aid Button -E266-
     • Front Display Open/Close Button -E462-
     • Parallel Parking Assistance Button -E581-
     • Driving Profile Selection Switch Module -E592-
     • Start/Stop Mode Button -E693-
     • Front Passenger Airbag -Disabled- Indicator Lamp -K145-
     • Rear Spoiler Adjustment Switch -E127-
   • The components cannot be replaced separately if faulty.
   • Removing and installing. Refer to BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING .
2. Instrument Panel Vent
3. Left Seat Heating Button -E653-
   • Integrated in the Front A/C Display Control Head 1 -E774-
   • Front A/C Display Control Head 1 -E774-, Removing and installing. Refer to A/C DISPLAY CONTROL HEADS, REMOVING AND INSTALLING
4. Front Passenger Airbag Deactivation Key Switch -E224-
   • Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
5. Glove Compartment Lamp Switch -E26-
   • Removing and installing. Refer to Glove Compartment Lamp Switch -E26-, REMOVING AND INSTALLING .
6. Instrument Cluster
7. Instrument Cluster Operation Button -E493-
   • Removing and installing. Refer to BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING, Instrument Cluster Operation Button -E493- .
8. Right Seat Heating Button -E654-
   • Integrated in the Front A/C Display Control Head 5 -E778-
   • Front A/C Display Control Head 5 -E778-, Removing and installing. Refer to A/C DISPLAY CONTROL HEADS, REMOVING AND INSTALLING .
9. Instrument Panel Vent
10. Light Switch -E1-
    • With instrument panel and switch illumination dimmer switch, rear fog lamp button
    • Versions with night vision system button
    • Removing and installing. Refer to Light Switch -E1-, REMOVING AND INSTALLING .
