Overview - Front Passenger Airbag

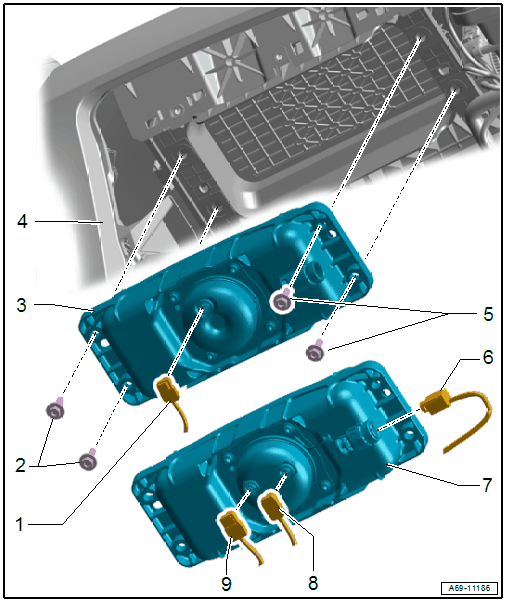

Fig 1: Exploded View Of Front Passenger Airbag

Courtesy of AUDI OF AMERICA, LLC

Connector
- For Front Passenger Airbag Igniter 1 -N131-
Bolts
- 8 Nm
- Replace after removing
Front Passenger Airbag
- With Front Passenger Airbag Igniter 1 -N131-, Front Passenger Airbag Igniter 2 -N132- and Front Passenger Airbag Release Valve Igniter -N491-
  WARNING:
  - Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS FOR PYROTECHNIC COMPONENTS .
  - Follow the allocation of the airbag unit to the instrument panel. Refer to the Parts Information.
- Allocation. Refer to the Parts Information.
- Removing and installing. Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
Instrument Panel
- Replace the instrument panel after an airbag has deployed. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
Bolts
- 8 Nm
- Replace after removing
Connector
- North American market-specific
- For the Front Passenger Airbag Release Valve Igniter -N491-
- Replace after airbag deployment. Refer to WIRING HARNESS AND CONNECTOR REPAIRS .
Front Passenger Airbag Unit -NX3-
- With Front Passenger Airbag Igniter 1 -N131-, Front Passenger Airbag Igniter 2 -N132- and Front Passenger Airbag Release Valve Igniter -N491-
  WARNING:
  - Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS FOR PYROTECHNIC COMPONENTS .
  - Follow the allocation of the airbag unit to the instrument panel. Refer to the Parts Information.
- Allocation. Refer to the Parts Information.
- Removing and installing. Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
Connector
- For Front Passenger Airbag Igniter 2 -N132-
Connector
- For Front Passenger Airbag Igniter 1 -N131-
