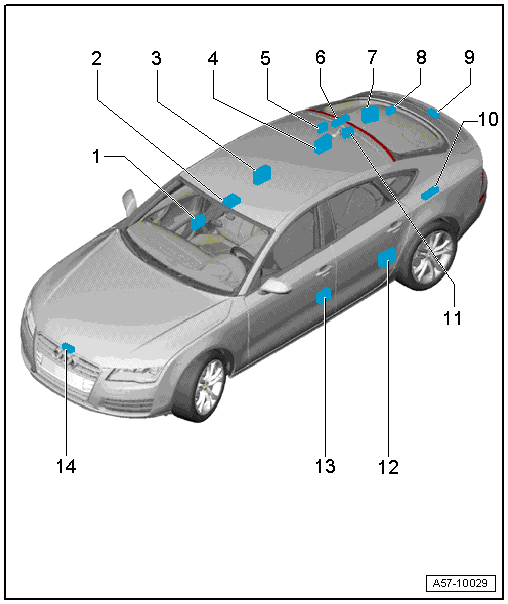

Component Location Overview - Central Locking
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Front Passenger Door Control Module -J387-
- Removing and installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
- Anti-Theft Alarm System Sensor -G578-
- Right Rear Door Control Module -J389-
- Removing and installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
- Comfort System Central Control Module -J393-
- Removing and installing. Refer to Comfort System Central Control Module -J393-, REMOVING AND INSTALLING .
- Fuel Filler Door Unlock Motor -V155-
- Removing and installing. Refer to Fuel Filler Door Unlock Motor -V155-, REMOVING AND INSTALLING .
- Rear Lid Motor 1 -V444-
- Removing and installing is identical to removing and installing the Rear Lid Motor 2 -V445-.
- Vehicle Positioning System Interface Control Module -J843-
- Removing and installing. Refer to Vehicle Positioning System Interface Control Module -J843-, REMOVING AND INSTALLING .
- Rear Spoiler Control Module -J223-
- Removing and installing. Refer to Rear Spoiler Control Module -J223-, REMOVING AND INSTALLING .
- Rear Lid Closing Assist Motor -V382-
- Rear Lid Motor 2 -V445-
- Removing and installing. Refer to OVERVIEW - REAR LID, Rear Lid Motor 2 -V445-, MOTOR WORM GEAR .
- Rear Lid Control Module -J605-
- Removing and installing. Refer to Rear Lid Control Module -J605-, REMOVING AND INSTALLING .
- Left Rear Door Control Module -J388-
- Removing and installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
- Driver Door Control Module -J386-
- Removing and installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
- Engine Hood Contact Switch -F266-
