OVERVIEW - REAR LID, Rear Lid Motor 2 -V445-, MOTOR WORM GEAR

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

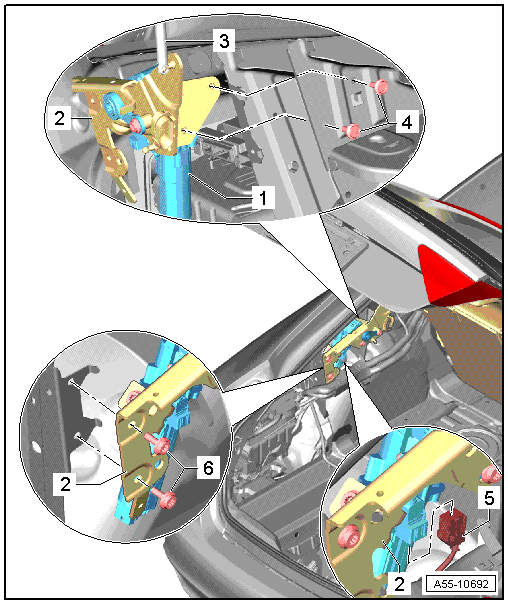

Fig 1: Identifying Rear Lid Overview

Courtesy of AUDI OF AMERICA, LLC

Rear Lid Motor 2 -V445-
- Disengage the coupling rod (refer to REAR LID DRIVE COUPLING ROD, REMOVING AND INSTALLING ) and the gas-filled strut (refer to GAS-FILLED STRUT, REMOVING AND INSTALLING ).
- Removing and installing. Refer to Rear Lid Motor 1 -V444- AND Rear Lid Motor 2 -V445-, REMOVING AND INSTALLING .
Rear Lid Drive Motor Tilting Mechanism
- Removing. Refer to Rear Lid Motor 1 -V444- AND Rear Lid Motor 2 -V445-, REMOVING AND INSTALLING .
Coupling Rod
- Removing. Refer to REAR LID DRIVE COUPLING ROD, REMOVING AND INSTALLING .
Screw
- 21 Nm
Connector
Bolt
- 21 Nm

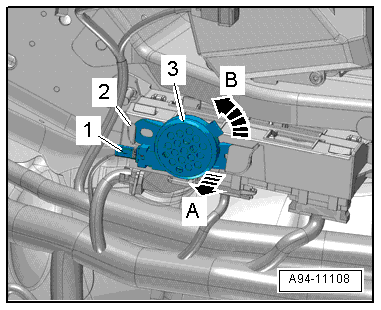

Fig 2: Removing/Installing Rear Lid Buzzer

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right luggage compartment side trim panel. Refer to Luggage Compartment Trim Panels .

-- Disconnect the connector -1-.

-- Loosen the buzzer -3- in direction of -arrow A- and remove it from the mount -2- -arrow B-.
