Fuel Filler Door Unlock Motor -V155-, REMOVING AND INSTALLING

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

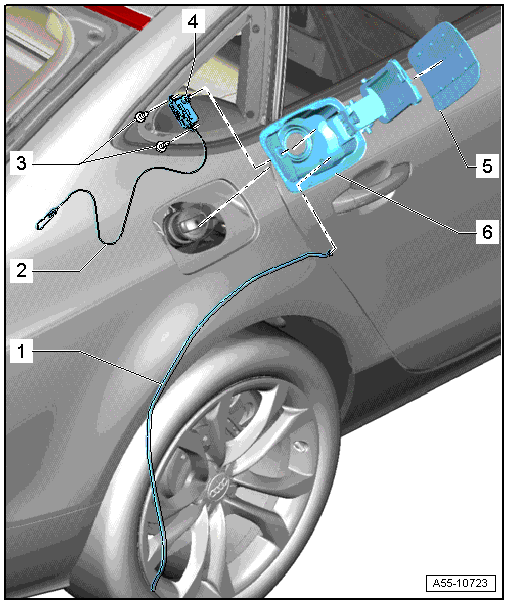

Fig 1: Identifying Fuel Filler Door Unlock Motor -V155-

Courtesy of AUDI OF AMERICA, LLC

Drain Hose
Emergency Release Cable
Screw
- 1.7 Nm
Fuel Filler Door Unlock Motor -V155-
- Removing:
  -- Fuel filler door removed. Refer to FUEL FILLER DOOR, REMOVING AND INSTALLING

  -- Disconnect the electrical connector and the swivel cable from the side panel in the luggage compartment and pull forward.

  -- Remove the bolts -3- and remove the Fuel Filler Door Unlock Motor -V 155- from the fuel filler door.
- Installing:
  -- Install in reverse order of removal.
Fuel Filler Door Cover
Fuel Filler Door
- Removing. Refer to FUEL FILLER DOOR, REMOVING AND INSTALLING .

Fuel Filler Door Emergency Release

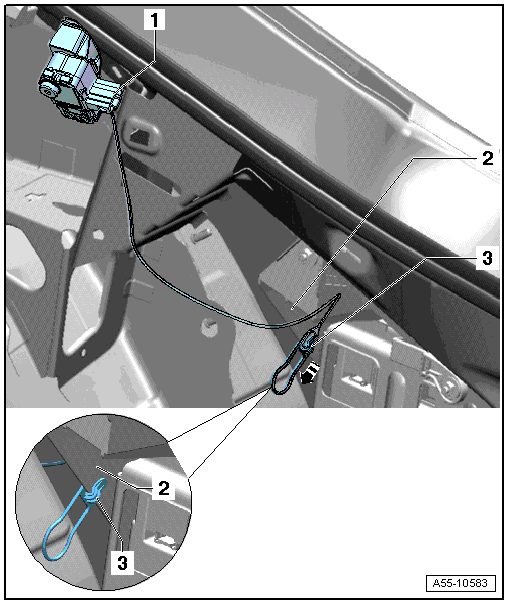

Fig 2: Identifying Fuel Filler Door Unlock Motor -V155-

Courtesy of AUDI OF AMERICA, LLC

Fuel Filler Door Unlock Motor -V155-
- With fuel filler door, removing and installing
Side Panel
Emergency Release Cable
- Insert the Fuel Filler Door Unlock -V 155- ash sown with the cable over the tank opening.
- Pull the cable back into the vehicle interior and connect it with the tab on the flange -2- on the side panel.
