Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

-- Push the release downward and disconnect the connectors.

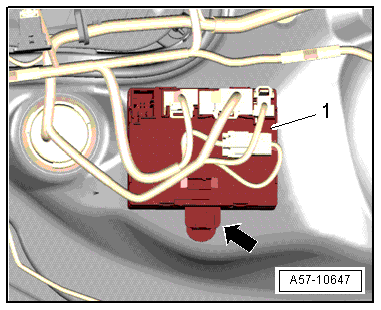

Fig 1: Disengaging Door Control Module -1-

Courtesy of AUDI OF AMERICA, LLC

-- Press the catch in direction of -arrow- and disengage the door control module -1- from the door shell.

Installing

-- Installation in reverse order of removal making sure the retainer locks into the inner door panel.
