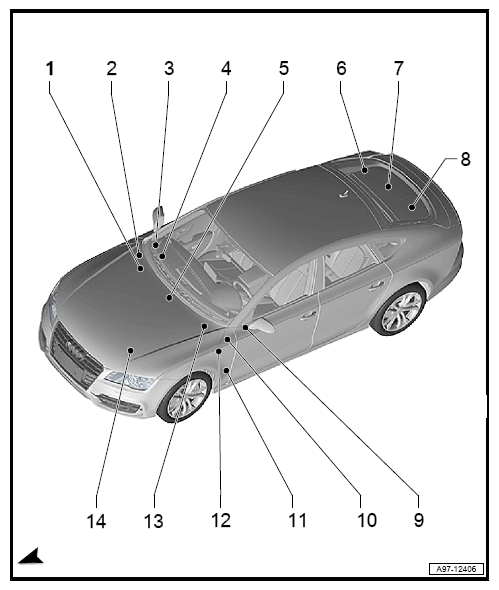

Overview Of Fuses
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- 1 - Battery Jump Start Terminal -U6-
- 2 - Not for USA/Canada
- 3 - Fuse Panel C -SC-
- , left-hand drive Fuse Panel C -SC-, Left-Hand Drive
- Position of fuses, left-hand drive Position of Fuses Fuse Panel C -SC-, Left-Hand Drive
- 4 - Not for USA/Canada
- 5 - Terminal 30 Wire Junction -TV2-
- Coolant Fan Single Fuse -S42-
- Second Speed Coolant Fan Fuse -S104-
- Catalytic converter heating fuse -S351-
- Catalytic converter heating fuse 2 -S354-
- and Position of Fuses Terminal 30 Wire Junction -TV2-
- 6 - Fuse Panel F -SF-
- Rear window defogger fuse -S41-, from model year 2015
- Self-Leveling System Fuse -S110-, from model year 2015
- Rear Lid Remote Unlocking Fuse -S195-, through model year 2014
- Fuse 1 - Terminal 30 -S204-, from model year 2015
- Optional Equipment Main Fuse -S245-
- Circuit Breaker 1 -S361-, from model year 2015
- Circuit Breaker 2 -S362-, from model year 2015
- , through model year 2014 Fuse Panel F -SF-, Through Model Year 2014
- , from model year 2015 Fuse Panel F -SF-, From Model Year 2015
- Position of fuses Position of Fuses Fuse Panel F -SF-
- 7 - Not Used
- 8 - Main Fuse On The Battery -A-
- Safety Fuse 1 -S131-
- Safety Fuse 2 -S132-
- Safety Fuse 3 -S133-
- Battery Interrupt Igniter -N253-
- and Position of Fuses Main Fuse Carrier On Battery -A-
- 9 - Fuse Panel B -SB-
- , left-hand drive Fuse Panel B -SB-, Left-Hand Drive
- Position of fuses, left-hand drive Position of Fuses Fuse Panel B -SB-, Left-Hand Drive
- 10 - Fuses On The Auxiliary Relay Panel In The Relay Panel, Behind Instrument Panel
- Heating Element Fuse 1 -S276-
- Heating Element Fuse 2 -S277-
- and Position of Fuses Fuses On Auxiliary Relay Carrier In Relay Carrier Behind Instrument Panel
- 11 - Fuse Panel D -SD-
Only left-hand drive
- ABS Control Module Fuse 1 -S123-
- Fuse Panel D -SD-
- Position of fuses Position of Fuses Fuse Panel D -SD-
- ABS Control Module Fuse 1 -S123-
- 12 - Fuses On Connector Station Left A-Pillar
- Driver's Power Seat Adjustment Circuit Breaker 1 -S44-, left-hand drive
- Front Passenger's Power Seat Adjustment Circuit Breaker 1 -S46-, left-hand drive
- and Position of Fuses, left-hand drive Fuses On Connector Station Left A-Pillar, Left-Hand Drive
- 13 - Fuse Panel A -SA- In Electronics Box Plenum Chamber
- Automatic Transmission control module fuse -S113-
- Glow Plugs Fuse -S125-
- Secondary Air Injection (AIR) Pump Fuse -S130-
- , left-hand drive, except 6 cylinder diesel engine with engine code CRTD/CRTE/CRTF/CZVA/CZVB/CZVC/CZVD/CZVE/CZVF Fuse Panel A -SA-, Left-Hand Drive, Except 6 Cylinder Diesel Engine with Engine Code CRTD/CRTE/CRTF/CZVA/CZVB/CZVC/CZVD/CZVE/CZVF
- Position of fuses Fuse Panel A -SA-
- 14 - Not For USA/Canada
- only 6 Cylinder diesel engine with engine code CRTD/CRTE/CRTF/CZVA/CZVB/CZVC/CZVD/CZVE/CZVF
