Main Fuse Carrier On Battery -A-
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

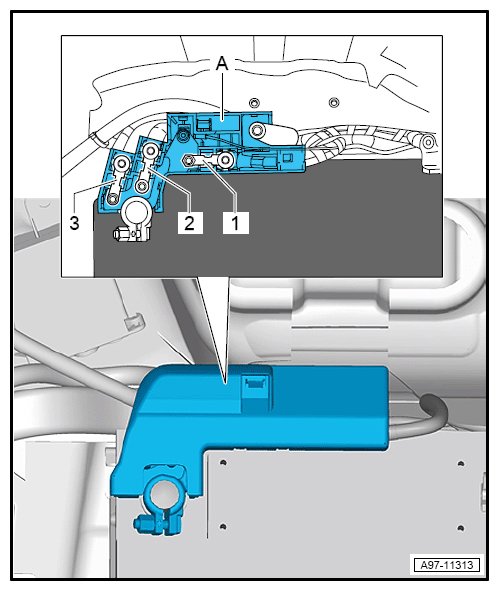

In Luggage Compartment on Battery -A-.
- A - Battery Interrupt Igniter -N253-
- 1 - Safety Fuse 1 -S131-, 150 A
- 2 - Safety Fuse 2 -S132-, 150 A through CW 43/2011
- 2 - Safety Fuse 2 -S132-, 110 A from CW 44/2011
- 3 - Safety Fuse 3 -S133-, 150 A
