Terminal 30 Wire Junction -TV2-
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

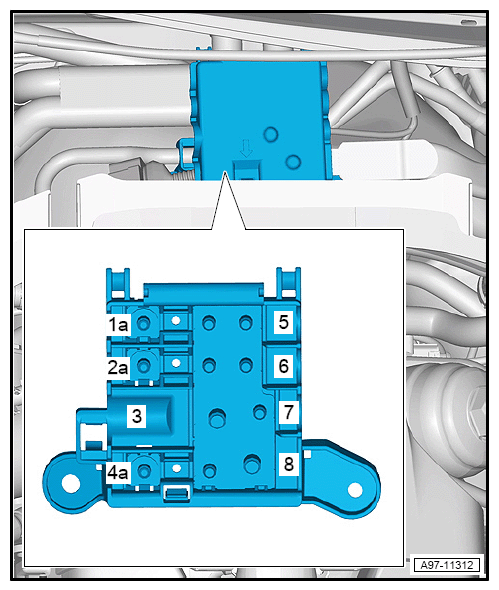

In center plenum chamber.
- 1 - Coolant Fan Single Fuse -S42-, 40 A / 60 A
- 2 - Second Speed Coolant Fan Fuse -S104-, 40 A / 60 A
- 3 - Starter -B-, Generator (GEN) -C-, Battery Jump Start Terminal -U6-
- 4 - Catalytic Converter Heating Fuse 2 -S354-, 60 A
- 5 - to Heating Element Fuse 1 -S276-, Heating Element Fuse 2 -S277- on auxiliary relay carrier in relay carrier behind instrument panel Fuses On Auxiliary Relay Carrier In Relay Carrier Behind Instrument Panel
- 6 - to Glow Plugs Fuse -S125- (only diesel engine)/Secondary Air Injection (AIR) Pump Fuse -S130- (only gasoline engine)
- 7 - Catalytic Converter Heating Fuse -S351- , 60 A
- 8 - Terminal 30 from Battery Interrupt Igniter -N253- on Main Fuse Carrier
