Fuse Panel F -SF-, Through Model Year 2014

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

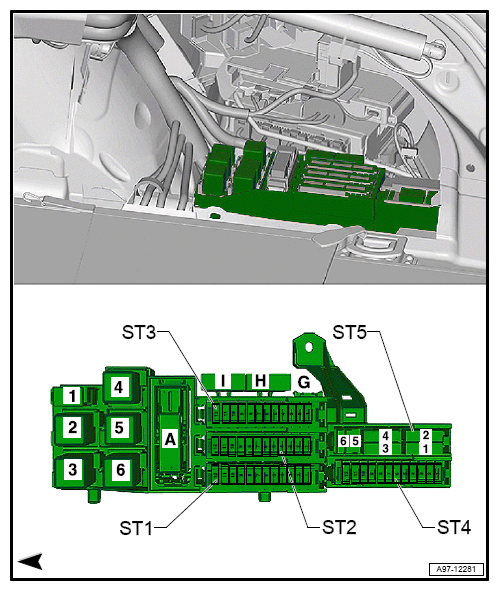

In luggage compartment, right rear.

Fuse Colours
- 40 A - Orange
- 30 A - Light-Green
- 25 A - Clear
- 20 A - Yellow
- 15 A - Light-Blue
- 10 A - Red
- 7.5 A - Brown
- 5 A - Light-Brown
A - 46-Pin Connector -T46b-, CAN Separating Connector, Black
G - Not Used
H - Rear Lid Remote Unlocking Fuse -S195-, 1 A
I - Optional Equipment Main Fuse -S245-, 15 A
- Only models with preparation for disabled persons (F6M)
ST1 - Fuse Carrier 1 -ST1-, Black, Left-Hand Drive
- Position of Fuses Position of Fuses Fuse Carrier 1 -ST1-, Black, Left-Hand Drive, Green Right-Hand Drive, Through Model Year 2014
ST2 - Fuse Carrier 2 -ST2-, Red, Left and Right-Hand Drive
- Position of Fuses Position of Fuses Fuse Carrier 2 -ST2-, Red, Left- and Right-Hand Drive, Through Model Year 2014
ST3 - Fuse Carrier 3 -ST3-, Brown, Left-Hand Drive
- Position of Fuses Position of Fuses Fuse Carrier 3 -ST3-, Brown, Left-Hand Drive, Through Model Year 2014
ST4 - Fuse Carrier 4 -ST4-, Green, Left-Hand Drive
- Position of Fuses Position of Fuses Fuse Carrier 4 -ST4-, Green, Left-Hand Drive, Through Model Year 2014
ST5 - Fuse Carrier 5 -ST5-, Black, Left and Right-Hand Drive

Back to overview Overview Of Fuses
