Fuse Panel F -SF-, From Model Year 2015

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

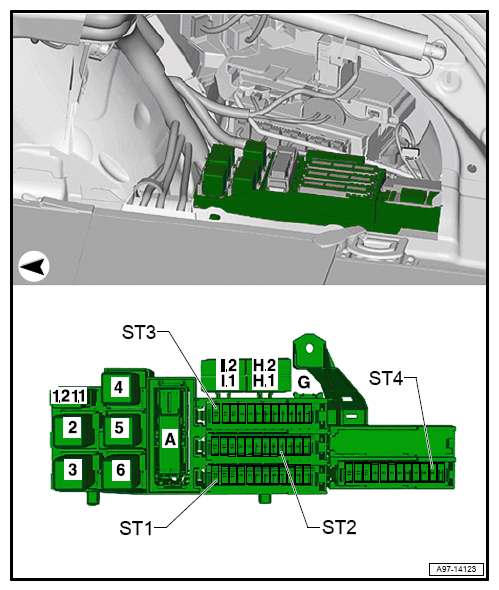

In luggage compartment, right rear.

Fuse Colours
- 40 A - Orange
- 30 A - Light-Green
- 25 A - Clear
- 20 A - Yellow
- 15 A - Light-Blue
- 10 A - Red
- 7.5 A - Brown
- 5 A - Light-Brown
A - 46-Pin Connector -T46b-, CAN Separating Connector, Black
G - Not Used
H1 - Rear Window Defogger Fuse -S41-, 40 A
H2 - Not Used
I1 - Optional Equipment Main Fuse -S245-, 15 A
- Only models with preparation for disabled persons (F6M)
I2 - Not Used
1.1 - Self-Leveling System Fuse -S110-, 40 A
1.2 - Fuse 1 - Terminal 30 -S204-, 50 A
ST1 - Fuse Carrier 1 -ST1-, Black, Left and Right-Hand Drive
- Position of fuses POSITION OF FUSES FUSE CARRIER 1 -ST1-, Black, Left- and Right-Hand Drive, From Model Year 2015
ST2 - Fuse Carrier 2 -ST2-, Red, Left and Right-Hand Drive
- Position of fuses Position of Fuses Fuse Carrier 2 -ST2-, Red, Left- and Right-Hand Drive, From Model Year 2015
ST3 - Fuse Carrier 3 -ST3-, Brown, Left and Right-Hand Drive
- Position of fuses Position of Fuses Fuse Carrier 3 -ST3-, Brown, Left- and Right-Hand Drive, From Model Year 2015
ST4 - Fuse Carrier 4 -ST4-, Black, Left and Right-Hand Drive
- Position of fuses Position of Fuses Fuse Carrier 4 -ST4-, Black, Left- and Right-Hand Drive, From Model Year 2015

Back to overview Overview Of Fuses
