Component Location Overview - Airbag System

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

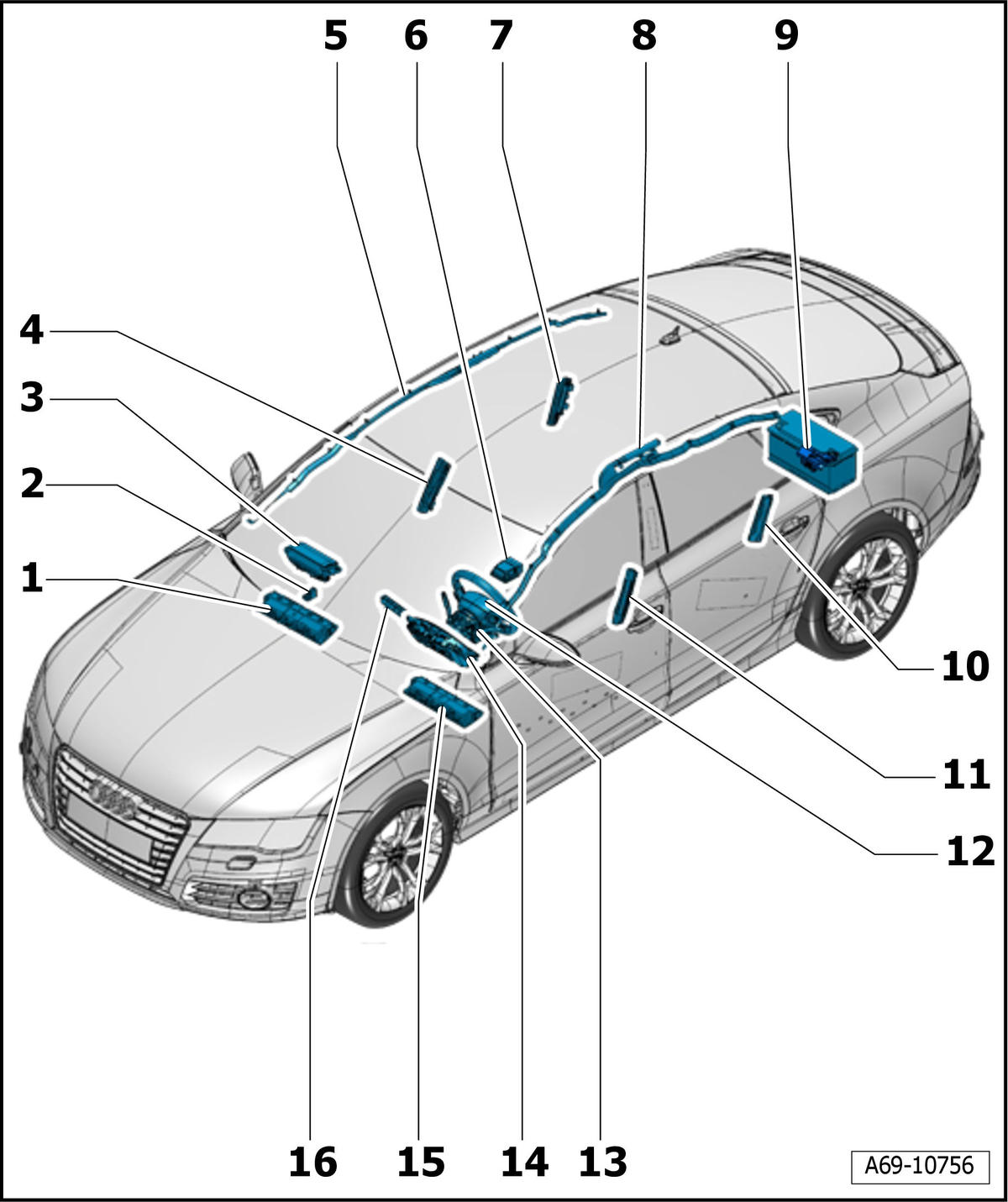

The installation locations in the Sedan are illustrated.

Courtesy of AUDI OF AMERICA, LLC

Passenger Side Knee Airbag
- With Front Passenger Knee Airbag Igniter -N296-
- Market-specific
- Overview. Refer to OVERVIEW - KNEE AIRBAG, FRONT PASSENGER SIDE .
Front Passenger Airbag Deactivation Key Switch -E224-
- Not for North American market.
Front Passenger Airbag with Front Passenger Airbag Igniter 1 -N131- and Front Passenger Airbag Release Valve Igniter -N491-
- Market-specific with Front Passenger Airbag Igniter 2 -N132-
- Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
Front Passenger Side Side Airbag with Front Passenger Thorax Airbag Igniter -N200-
- Overview. Refer to OVERVIEW - FRONT SIDE AIRBAG, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
Front Passenger Head Curtain Airbag with Front Passenger Head Curtain Airbag Igniter -N252-
- Overview. Refer to OVERVIEW - HEAD CURTAIN AIRBAG .
Airbag Control Module -J234-
- Overview. Refer to OVERVIEW - AIRBAG CONTROL MODULE .
Front Passenger Side Rear Side Airbag with Passenger Side Rear Thorax Airbag Igniter -N202-
- Equipment levels
- Overview. Refer to OVERVIEW - REAR SIDE AIRBAG .
Driver Head Curtain Airbag with Driver Head Curtain Airbag Igniter -N251-
- Overview. Refer to OVERVIEW - HEAD CURTAIN AIRBAG .
Battery Interrupt Igniter -N253-
- Overview. Refer to OVERVIEW - BATTERY INTERRUPT IGNITER .
Driver Side Rear Side Airbag with Driver Side Rear Thorax Airbag Igniter -N201-
- Equipment levels
- Overview. Refer to OVERVIEW - REAR SIDE AIRBAG .
Driver Side Side Airbag with Driver Thorax Airbag Igniter -N199-
- Overview. Refer to OVERVIEW - FRONT SIDE AIRBAG, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
Driver Side Airbag with Driver Airbag Igniter -N95- and Driver Airbag Release Valve Igniter -N490-
- Overview. Refer to OVERVIEW - DRIVER SIDE AIRBAG .
Steering Column Electronics Control Module -J527- with Airbag Spiral Spring/Return Spring with Slip Ring -F138- and Steering Angle Sensor -G85-
- Removing and installing. Refer to STEERING COLUMN SWITCH MODULE, REMOVING AND INSTALLING .
Airbag Indicator Lamp -K75-
- Component location: in instrument cluster. Refer to INSTRUMENT CLUSTER .
- Cannot be replaced separately
Driver Side Knee Airbag
- With the Driver Knee Airbag Igniter -N295-
- Market-specific
- Overview. Refer to OVERVIEW - KNEE AIRBAG, DRIVER SIDE .
Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- Integrated in the switch unit with the Start/Stop Mode Button -E693-, Parallel Parking Assistance Button -E581-, Parking Aid Button -E266-, Rear Spoiler Adjustment Switch -E127-, ASR/ESP Button -E256- ; replace the switch unit if faulty.
