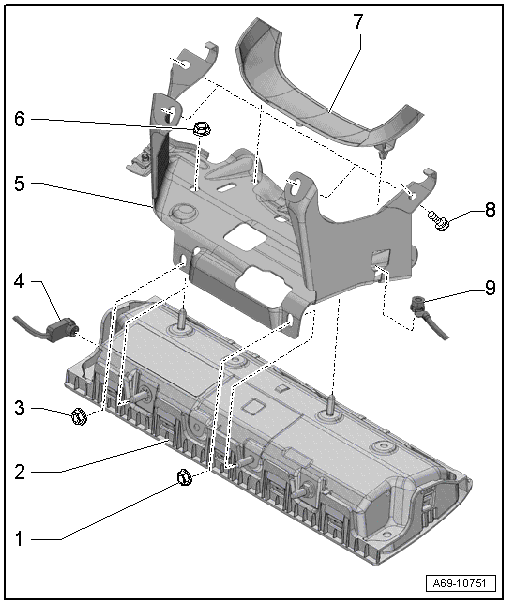

Overview - Knee Airbag, Driver Side
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- 8 Nm
- Replace
- Driver Side Knee Airbag
- With the Driver Knee Airbag Igniter -N295-WARNING:
Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Removing and installing. Refer to DRIVER SIDE KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- With the Driver Knee Airbag Igniter -N295-
- Nut
- 8 Nm
- Replace
- Connector
- For the Driver Knee Airbag Igniter -N295-
- Disconnecting and connecting. Refer to Removing
- Bracket
- For the driver knee airbag
- Removing and installing. Refer to DRIVER SIDE KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- Nut
- 8 Nm
- Replace
- Gap Cover
- Clip to the bracket
- Bolt
- 9 Nm
- Quantity: 4
- Replace
- Tightening sequence. Refer to Installing
- Nut
- 9 Nm
- With connection for the Ground (GND) cable
