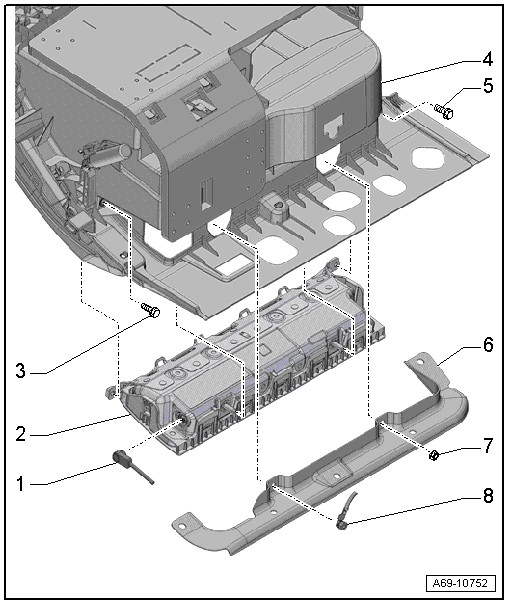

Overview - Knee Airbag, Front Passenger Side
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Connector
- For Front Passenger Knee Airbag Igniter -N296-
- Disconnecting. Refer to Removing => Release the connector lock -2- with a small screwdriver -arrow- and disconnect the connector -1-. .
- Passenger Side Knee Airbag
- With Front Passenger Knee Airbag Igniter -N296-WARNING:
Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Removing and installing. Refer to PASSENGER SIDE KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
- With Front Passenger Knee Airbag Igniter -N296-
- Bolt
- 8 Nm
- Replace
- Glove Compartment
- Removing and installing. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING, WITH KNEE AIRBAG .
- Bolt
- 8 Nm
- Replace
- Support
- For knee airbag
- Nut
- 8 Nm
- Replace
- Nut
- 8 Nm
- With connection for the Ground (GND) cable
