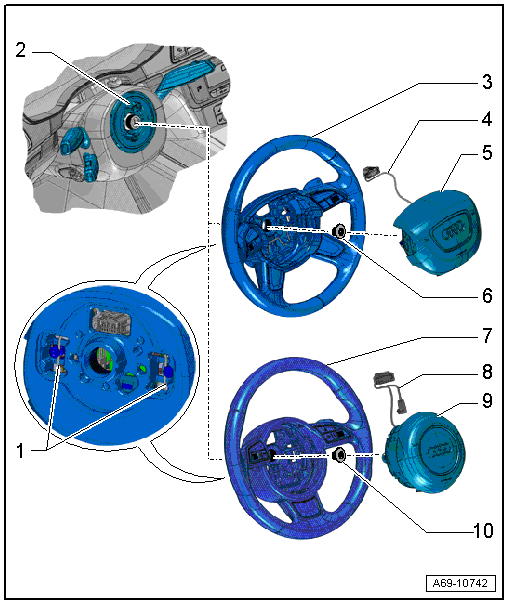

Overview - Driver Side Airbag
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Locking Bracket
- Use a T25 TORX® screwdriver, approximately 100 mm long
- Steering Column Electronics Control Module -J527-
- With Airbag Spiral Spring/Return Spring with Slip Ring -F138- and Steering Angle Sensor -G85-
- Removing and installing. Refer to STEERING COLUMN SWITCH MODULE, REMOVING AND INSTALLING .
- 4-Spoke Steering Wheel
- Equipment levels
- Removing and installing. Refer to STEERING WHEEL, REMOVING AND INSTALLING .
- Wiring Harness
- For Driver Airbag Igniter -N95- and Driver Airbag Release Valve Igniter -N490-
- Replacing. Refer to AIRBAG CONNECTOR, REPLACING .
- Press in to secure in the pockets on the steering wheel.
- Driver Side Airbag
- With the Driver Airbag Igniter -N95- and Driver Airbag Release Valve Igniter -N490-WARNING:
Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Removing and installing. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
- With the Driver Airbag Igniter -N95- and Driver Airbag Release Valve Igniter -N490-
- Bolt
- Tightening specification. Refer to appropriate service information. .
- 3-Spoke-Steering Wheel
- Equipment levels
- Removing and installing. Refer to STEERING WHEEL, REMOVING AND INSTALLING .
- Wiring Harness
- For Driver Airbag Igniter -N95- and Driver Airbag Release Valve Igniter -N490-
- Replacing. Refer to AIRBAG CONNECTOR, REPLACING .
- Press in to secure in the pockets on the steering wheel.
- Driver Side Airbag
- With the Driver Airbag Igniter -N95- and Driver Airbag Release Valve Igniter -N490-WARNING:
Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Removing and installing. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
- With the Driver Airbag Igniter -N95- and Driver Airbag Release Valve Igniter -N490-
- Bolt
- Tightening specification. Refer to STEERING WHEEL, REMOVING AND INSTALLING .
