Overview - Front Side Airbag, Standard Seat/Sport Seat/Super Sport Seat

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

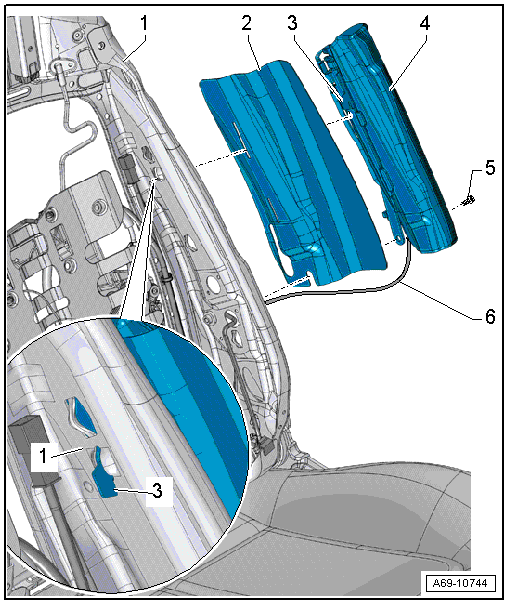

Fig 1: Front Side Airbag, Standard Seat/Sport Seat/Super Sport Seat Exploded View

Courtesy of AUDI OF AMERICA, LLC

Backrest Frame
Cushion Protection
- Only for standard seat/sport seat
Hook
- For securing the side airbag to the backrest frame
Front Side Airbag
- Driver side: with the Driver Thorax Airbag Igniter -N199-
- Front passenger side: with Front Passenger Thorax Airbag Igniter -N200-
  WARNING:
  Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Removing and installing. Refer to FRONT SIDE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
Bolt
- 10 Nm
- Replace
- Clean the threaded hole with a thread tap.
- Install with locking compound. For the correct locking compound. Refer to the Parts information.
Wiring Harness
- From Driver Thorax Airbag Igniter -N199- /Front Passenger Thorax Airbag Igniter -N200- directly to the connector station
