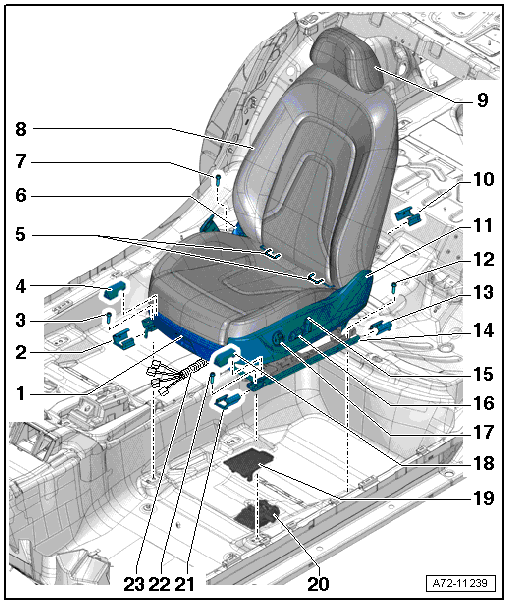

Overview - Front Standard Power Seat
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The overview is based on the driver seat. The passenger seat is similar and the components are installed reversed from left to right.
The illustration does not show the carpet and the four-way lumbar support.
- Storage Compartment
- Equipment levels
- Overview. Refer to OVERVIEW - STORAGE COMPARTMENT .
- Seat Rail Cover
- Front right
- Removing and installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
- Bolt
- 50 Nm
- Spindle Cover
- Clipped to the seat forward/back adjustment spindle
- Removing and installing. Refer to SEAT RAIL SPINDLE COVER, REMOVING AND INSTALLING .
- LATCH Child Seat Anchor
- Equipment levels
- for the front passenger seat only
- Overview. Refer to OVERVIEW - FRONT CHILD SEAT ANCHORS .
- For checking after an accident, refer to CHILD SEAT ANCHORS, CHECKING AFTER A COLLISION .
- Tunnel-Side Trim
- Overview. Refer to OVERVIEW - SILL AND TUNNEL SIDE TRIM, POWER STANDARD SEAT .
- Bolt
- 50 Nm
- Power Standard Front Seat
- Removing and installing. Refer to FRONT SEAT, REMOVING AND INSTALLING, POWER .
- Headrest
- Power
- Overview. Refer to OVERVIEW - POWER HEADRESTS .
- Seat Rail Cover
- Rear right
- Removing and installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
- Sill-Side Trim
- Overview. Refer to OVERVIEW - SILL AND TUNNEL SIDE TRIM, POWER STANDARD SEAT .
- Bolt
- 50 Nm
- Seat Rail Cover
- Rear left
- Removing and installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
- Lower Seat Frame
- Overview. Refer to OVERVIEW - SEAT PAN .
- Actuator
- for backrest and headrest adjustment
- Overview. Refer to OVERVIEW - SEAT ADJUSTMENT CONTROL HEAD .
- Actuator
- Seat forward/back, angle and height adjustment actuator
- Overview. Refer to OVERVIEW - SEAT ADJUSTMENT CONTROL HEAD .
- Driver Seat Lumbar Support Adjustment Switch -E176-
- Front passenger side Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Overview. Refer to OVERVIEW - LUMBAR SUPPORT ADJUSTMENT SWITCH .
- Spindle Cover
- Clipped to the seat forward/back adjustment spindle
- Removing and installing. Refer to SEAT RAIL SPINDLE COVER, REMOVING AND INSTALLING .
- Cap
- For the connector station
- Removing and installing. Refer to FRONT SEAT, MOVING INTO SERVICE POSITION .
- Connector Station
- Connector assignment. Refer to CONNECTOR STATION CONNECTORS .
- Seat Rail Cover
- Front left
- Removing and installing. Refer to SEAT RAIL COVER, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/SUPER SPORT SEAT .
- Bolt
- 50 Nm
- Corrugated Pipe
- For modular wiring routing
- Overview. Refer to OVERVIEW - MODULAR WIRING ROUTING .
