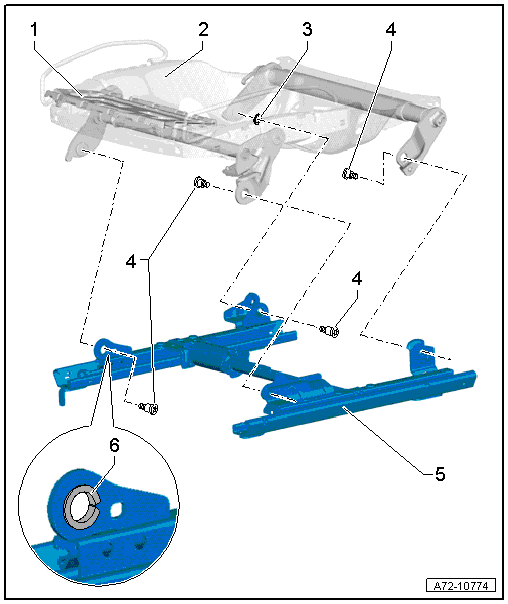

Overview - Seat Pan
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Seat Depth Adjuster
- Only for Sport seats
- Removing and installing. Refer to SEAT DEPTH ADJUSTER, REMOVING AND INSTALLING .
- Allocate correct version components.
- Upper Seat Frame
- Removing and installing. Refer to SEAT PAN, DISASSEMBLING AND ASSEMBLING .
- Allocate correct version components (repair kit).
- Install all electrical and electronic components and wires in the new upper frame.
- Washer
- Bolt
- 22 Nm
- Quantity: 4
- Self-locking
- Replace
- Threaded holes for bolts must be cleaned, for example, with a thread tap
- Lower Seat Frame
- Driver side: with Driver Seat Forward/Back Adjustment Motor -V28-
- Front passenger side: with Front Passenger Seat Forward/Back Adjustment Motor -V31-
- Cannot be disassembled
- Removing and installing. Refer to SEAT PAN, DISASSEMBLING AND ASSEMBLING .
- For replacing, install the Removing and Installing and seat belt latch in the new lower frame
- Bushing
- Inserted in all bearing locations
- Cannot be replaced
- The assembly component must be replaced if the bushing is damaged
