Overview - Lumbar Support Adjustment Switch
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

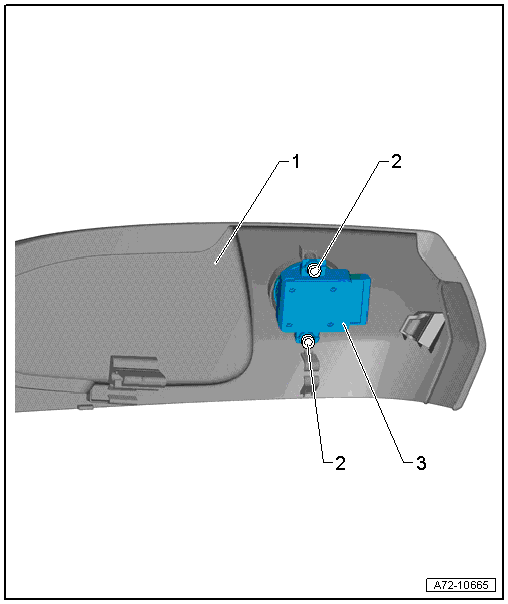

- Sill-Side Trim
- Bolts
- 0.5 Nm
- Quantity: 2
- Lumbar Support Adjustment Switch
- Driver side: Driver Seat Lumbar Support Adjustment Switch -E176-
- Front passenger side Front Passenger Seat Lumbar Support Adjustment Switch -E177-
- Removing and installing. Refer to LUMBAR SUPPORT ADJUSTMENT SWITCH, REMOVING AND INSTALLING, STANDARD SEAT/SPORT SEAT/COMFORT SEAT .
- Switch and operating knob cannot be separated
