Overview - Power Headrests
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

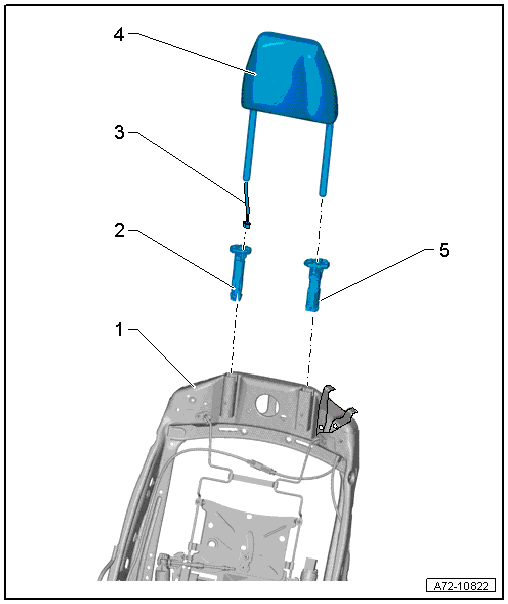

The illustration does not show the backrest cover and padding.
- Front Backrest
- Headrest Guide
- Without release button
- Removing and installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
- Always installed on right side of backrest
- Line
- With connector
- Connected firmly to the headrest
- Headrest
- Driver side: with Driver Headrest Adjustment Motor -V103- / Driver Headrest Height Adjustment Sensor -G217-
- Front passenger side: with Front Passenger Headrest Adjustment Motor -V104- / Front Passenger Headrest Height Adjustment Sensor -G282-
- Removing and installing. Refer to HEADREST, REMOVING AND INSTALLING, POWER HEADREST .
- Only the seat cover, the cushion and the complete body can be replaced on the head restraint
- It is not possible to disassemble the base plate or replace the electrical and electronic components installed inside.
- Headrest Guide
- With release button
- Removing and installing. Refer to HEADREST GUIDE, REMOVING AND INSTALLING, STANDARD/SPORT SEAT .
- Always installed on left side of backrest
