Component Location Overview - Storage Compartment/Covers

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

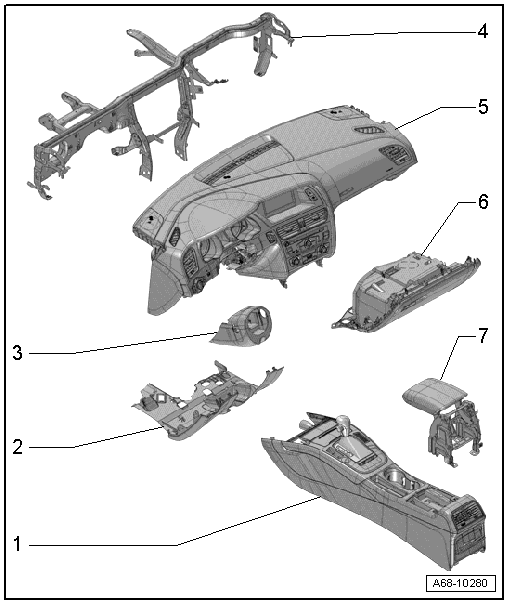

Fig 1: Identifying Instrument Panel Overview

Courtesy of AUDI OF AMERICA, LLC

Center Console
- Overview. Refer to OVERVIEW - CENTER CONSOLE .
Driver Side Instrument Panel Cover
- Overview. Refer to OVERVIEW - DRIVER SIDE INSTRUMENT PANEL COVER .
Trim Panel
- For the steering column switch module
- Overview. Refer to OVERVIEW - STEERING COLUMN TRIM PANEL .
Central Tube
- For the instrument panel
- Overview. Refer to OVERVIEW - INSTRUMENT PANEL CENTRAL TUBE .
Instrument Panel
WARNING:
Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
- Overview. Refer to OVERVIEW - INSTRUMENT PANEL .
Glove Compartment
- Overview. Refer to OVERVIEW - GLOVE COMPARTMENT .
Front Center Armrest
- Equipment levels
- Overview. Refer to OVERVIEW - FRONT CENTER ARMREST .
