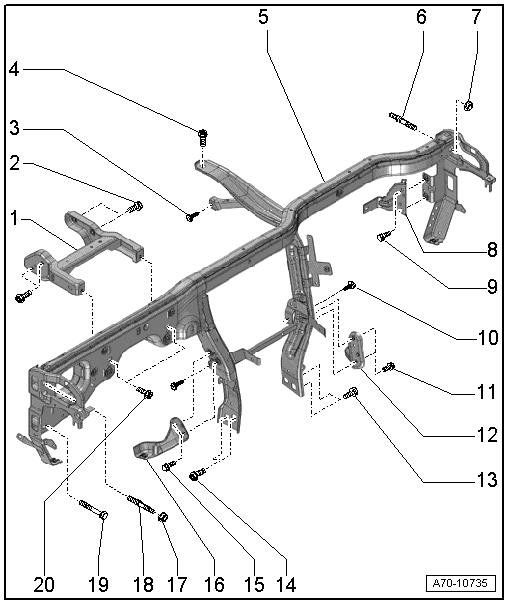

Overview - Instrument Panel Central Tube
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Mounting Bracket
- Removing and installing. Refer to MOUNTING BRACKET, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- Quantity: 4
- Bolt
- 3.6 Nm
- Bolt
- 20 Nm
- Central Tube
- For the instrument panel
- Removing and installing. Refer to INSTRUMENT PANEL CENTRAL TUBE, REMOVING AND INSTALLING .
- Stud Bolt
- 20 Nm
- Nut
- Always replace if removed
- 20 Nm
- Bracket
- For the air intake chamber
- Bolt
- Quantity: 2
- 9 Nm
- Bolt
- 3.6 Nm
- Quantity: 2
- Bolt
- 9 Nm
- Quantity: 2
- Bracket
- For the glove compartment
- Bolt
- 20 Nm
- Quantity: 2
- Bolt
- 20 Nm
- Quantity: 2
- Bolt
- 9 Nm
- Quantity: 2
- Bracket
- For the instrument panel cover
- Nut
- 20 Nm
- Always replace if removed
- Stud Bolt
- 20 Nm
- Bolt
- 20 Nm
- Bolt
- 20 Nm
- Quantity: 2
