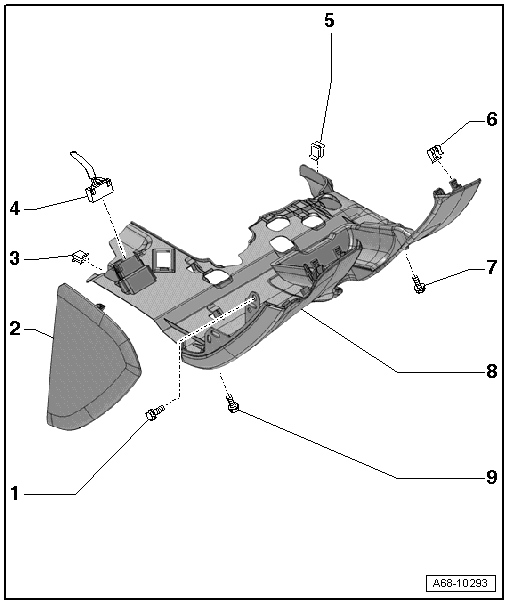

Overview - Driver Side Instrument Panel Cover
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 3 Nm
- Side Cover
- For the instrument panel
- Removing and installing. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
- Clip
- Install in the foot rest
- 16-Pin Connector -T16-
- Data Link Connector (DLC)
- Clip
- Install on the A/C unit
- Spring Clip
- For the driver side instrument panel cover
- Press into the instrument panel
- Bolt
- 3 Nm
- Driver Side Instrument Panel Cover
- Removing and installing. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
