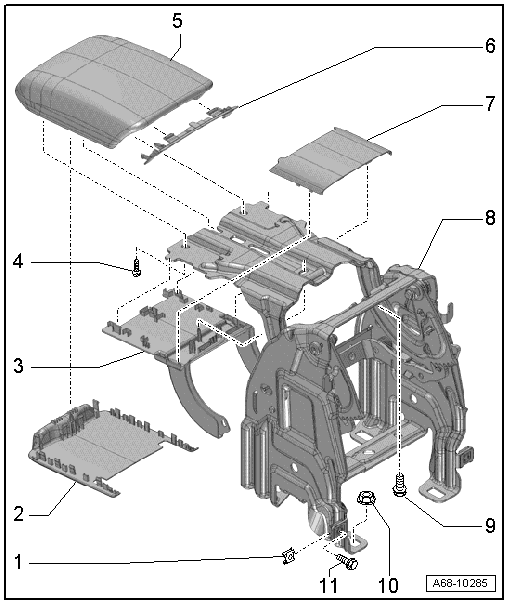

Overview - Front Center Armrest
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Spring Nut
- Quantity: 2
- Cover
- Clipped with -item 5-
- Lower Trim
- For the hinge arm
- Clipped with -item 7- and -item 8-
- Removing and installing. Refer to HINGE ARM TRIM, REMOVING AND INSTALLING .
- Bolt
- 2.2 Nm
- Quantity: 2
- Padding
- Removing and installing. Refer to CENTER ARMREST UPPER SECTION, REMOVING AND INSTALLING .
- Trim
- Upper Trim
- For the hinge arm
- Clipped with -item 3-
- Removing and installing. Refer to HINGE ARM TRIM, REMOVING AND INSTALLING .
- Support Base
- Removing and installing. Refer to FRONT CENTER ARMREST, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Quantity: 2
- Nut
- 20 Nm
- Quantity: 4
- Bolt
- 3 Nm
- Quantity: 2
