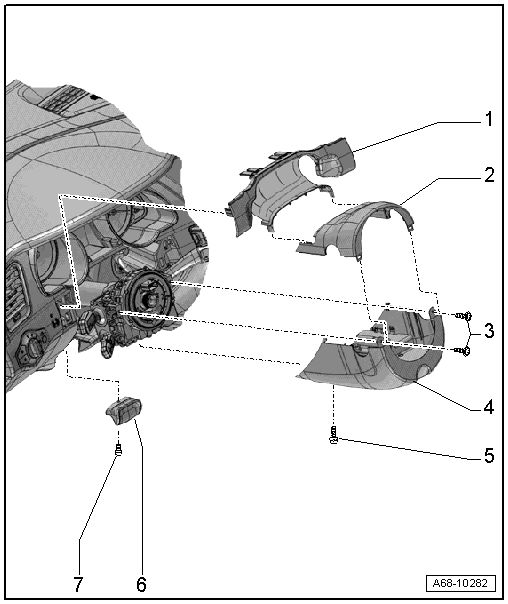

Overview - Steering Column Trim Panel
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Gap Cover
- for instrument cluster
- Removing and installing. Refer to INSTRUMENT CLUSTER GAP COVER, REMOVING AND INSTALLING .
- Upper Trim
- For the steering column switch module
- Removing and installing. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
- Bolts
- 2.0 Nm
- Lower Trim
- For the steering column switch module
- Removing and installing. Refer to LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .
- Bolt
- 2.0 Nm
- Handle
- for the steering column adjustment
- Equipment levels
- Bolt
- 3 Nm
