Headlamps with High Intensity Gas Discharge (HID) "Bi-Xenon" Lamps, assembly

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

After performing any repairs or service that could affect headlight aim, check/adjust aim.

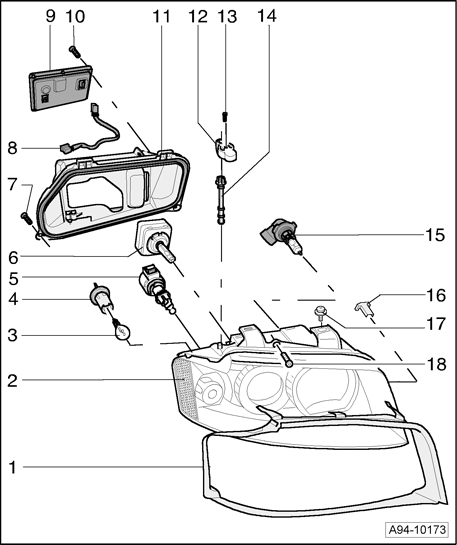

Fig 1: Headlamps With High Intensity Gas Discharge (HID) "Bi-Xenon" Lamps, Assembly

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Trim cover

2 - Headlamp housing

Removing and installing → Headlamps, removing and installing

3 - Turn signal/parking lamp bulb

12 V, 28/7 W
Orange
Replacing → Turn signal/parking lamp bulb, replacing

4 - Bulb holder

For turn signal

5 - Headlamp beam adjustment motor

Left Headlamp Beam Adjustment Motor V48
Right Headlamp Beam Adjustment Motor V49
Removing and installing → Headlamp Beam Adjustment Motor V48 / V49, removing and installing

6 - High intensity gas discharge (HID) low beam headlamp bulb

35 W, D1S
Replacing → HID low beam headlamp bulb, replacing

7 - Screw - 1.5 Nm

8 - Adapter lead

Removing and installing → Adapter cable for HID headlamp bulb control module, removing and installing

9 - High intensity gas discharge (HID) lamp control module

Left High-intensity Gas Discharge (HID) Lamp Control Module J343
Right High-intensity Gas Discharge (HID) Lamp Control Module J344
Removing and installing → High Intensity Gas Discharge (HID) Lamp Control Module J343 / J344, removing and installing

10 - Screw - 1.5 Nm

11 - Housing cover

12 - Cover cap with adjuster wheel

13 - Screw - 1.5 Nm

14 - Adjuster rod

15 - Left High Beam Headlamp M30 , Right High Beam Headlamp M32 - bulb

H10 - 12 V, 42 W
Replacing → High Beam Headlamp bulb M30 / M32, replacing

16 - Vent element

17 - Screw - 6 Nm

18 - Stop bolt

For aligning headlamp housing with body contour
Must make contact with lock carrier
