Adapter cable for HID headlamp bulb control module, removing and installing

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

HIGH VOLTAGE!
Always disconnect negative ( - ) battery terminal prior to working on parts of HID headlamp components marked with yellow "HIGH VOLTAGE" warning symbols.

Removing

Remove headlamp → Headlamps, removing and installing .

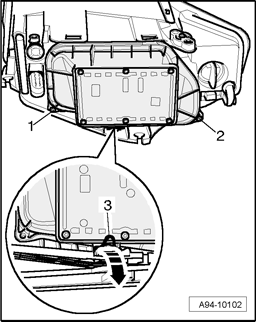

Fig 1: Removing Screws And Retaining Clip

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove screws - 1 - and - 2 -.
Release retaining clip - 3 - in direction of - arrow - and detach housing cover from headlamp housing.

Fig 2: Identifying Screws And Control Module

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove screws - arrows -.
Remove control module - 1 - from housing cover for headlamp housing.

Fig 3: Identifying Electrical Connections

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect electrical connection - 1 -.

NOTE:

Disregard - 2 -.

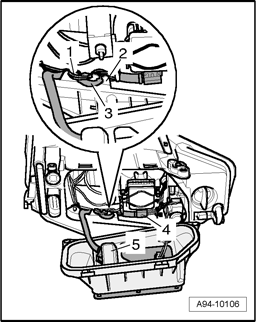

Fig 4: Identifying Electrical Connection, Wiring, Adapter Cable, Retainer, And Housing Cover

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect electrical connection - 4 - at HID headlamp bulb.
Remove wiring - 1 - and adapter cable - 3 - from retainer - 2 -.
Guide adapter cable out of housing cover - 5 -.

Installing

Install in reverse order of removal, noting the following:

Insert adapter cable and electrical wiring in retainer.
Check gasket between control module for gas discharge lamp and headlamp housing.
Install headlamp Installing .
Reconnect battery. Required steps Reconnecting .

Tightening torque

Component - fastener	Nm
Control module to headlamp - screw	1
