Ribbed Belt Drive Overview

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

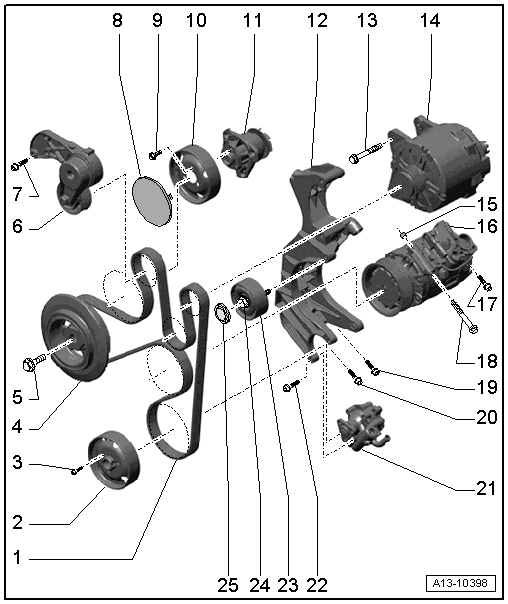

Fig 1: Identifying Ribbed Belt Drive, Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Ribbed Belt
- Check for wear.
- Do not kink.
  CAUTION:
  Risk of damage due to reversed running direction on a used ribbed belt.
  - Before Removal ribbed belt, marking running direction with chalk or felt-tip pen for reinstallation later.
- Removing and Installing, refer to RIBBED BELT, REMOVING AND INSTALLING .
- When Installation, make sure it is seated correctly on the pulleys.
Power Steering Pump Ribbed Belt Pulley
Bolt
- Tightening specification, refer to Special Tools .
Vibration Damper
- With ribbed belt pulley.
- Removing and Installing, refer to VIBRATION DAMPER, REMOVING AND INSTALLING .
Bolt
- 100 Nm + 180° (¹ /₂ turn)
- Replace
- Use the Counterhold - Vibration DamperT10069 to loosen and tighten.
Ribbed Belt Tensioning Roller
- Turn with a wrench to release the tension on the ribbed belt.
- Secure with M8x50 bolt.
- Removing and Installing, refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING .
Bolt
- 25 Nm
Cap
Bolt
- Tightening specification COOLANT PUMP AND COOLANT THERMOSTAT OVERVIEW
Coolant Pump Ribbed Belt Pulley
Coolant Pump
Auxiliary Components Bracket
- Removing and Installing, refer to AUXILIARY COMPONENTS BRACKET, REMOVING AND INSTALLING .
Bolt
- Tightening specification, refer to Special Tools .
Generator
- Removing and Installing, refer to GROUND CABLE WITH Battery Monitoring Control Module -J367- FROM MY 09, REMOVING AND INSTALLING .
A/C Compressor Fitting Sleeve
A/C Compressor
- Do not remove or disconnect refrigerant lines.
- Removing and Installing, refer to COMPRESSOR, REMOVING AND INSTALLING ON BRACKET .
Bolt
- Tightening specification, refer to Specifications .
Bolt
- Tightening specification, refer to Specifications .
Bolt
- 25 Nm
Fitting Screw
- Quantity: 2
- Tightening sequence, refer to Fig 2.
Power Steering Pump
- Removing and Installing, refer to POWER STEERING PUMP, REMOVING AND INSTALLING .
Bolt
- Tightening specification, refer to Special Tools .
Idler Roller
Bolt
- 45 Nm
Cap

Fig 2: Accessory Bracket Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten bolts in 2 stages in -1... 5- sequence as follows:

-- Tighten bolts by hand.-- Tighten the bolts to 25 Nm.

NOTE:

Screws -1- and -2- are fitting screws.

Fig 3: Identifying Sealing Flange Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in 3 steps as follows:

-- Install screws -1 to 11- and tighten by hand.-- Tighten the bolts -1 to 6- in a diagonal sequence in stages to 10 Nm.-- Tighten the bolts -7 to 11- to 10 Nm.
