Ribbed Belt, Removing And Installing

WARNING: This page is about a different car, the 2010 Audi Q7, 2009 Audi Q7, 2008 Audi Q7, and 2007 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

M8x50 bolt

Removal

Proceed as follows:

CAUTION:

Risk of damage due to reversed running direction on a used ribbed belt.

Before Removal ribbed belt, marking running direction with chalk or felt-tip pen for reinstallation later.

-- To release ribbed belt tension, rotate tensioner in -direction of arrow-.

Fig 1: Identifying M8x50 Bolt In Threaded Hole

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of destroying tensioner.

Only install bolt for securing tensioner far enough so that ribbed belt can be removed.

-- Secure tensioner with M8x50 bolt -arrow A-.

-- Remove the ribbed belt.

Installation

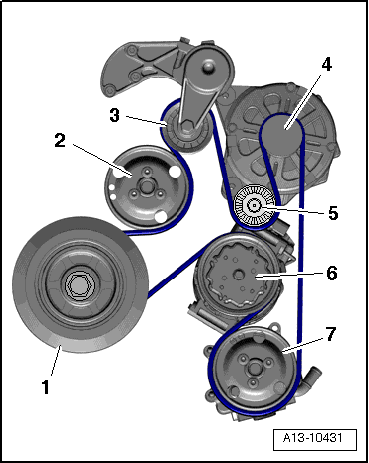

Fig 2: Identifying Ribbed Belt Routing

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

NOTE:

Before Installation the ribbed belt, the generator, A/C compressor and power steering pump must be secured.

-- Route ribbed belt as follows:

Vibration Damper
Coolant Pump
Tensioning Roller
Generator
Idler Roller
A/C Compressor
Power Steering Pump

NOTE:

When Installation the ribbed belt, make sure it is seated correctly on the pulleys.

-- Release tensioner by Removal bolt.

-- Check whether ribbed belt is routed correctly.

-- Start engine and check whether ribbed belt runs correctly.
