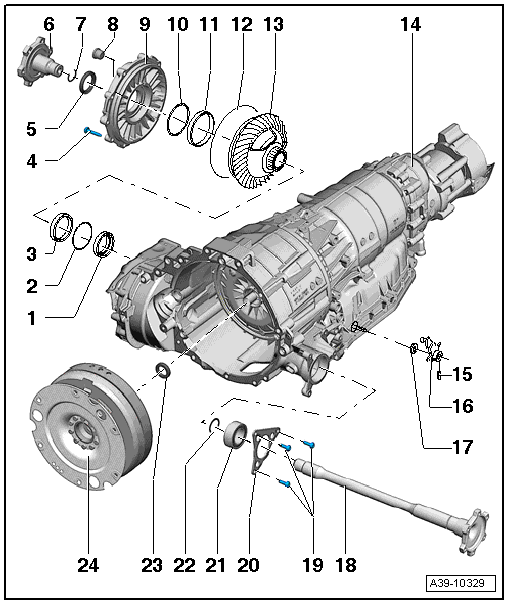

Front Final Drive Overview
NOTE:
Clean working conditions for the automatic transmission, refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
General Repair Instructions, refer to REPAIR INFORMATION .
- Left Flange Shaft Seal
- Between the final drive and the transmission housing
- Removing and installing, refer to LEFT FLANGE SHAFT SEAL
- Adjusting Shim
- Behind the taper roller bearing outer race
- Taper Roller Bearing Outer Race
- Bolt
- Quantity: 11
- Tightening specification and sequence, refer to Fig 2
- Right Flange Shaft Seal
- Removing and installing, refer to RIGHT FLANGE SHAFT SEAL
- Right Flange Shaft
- Removing and installing, refer to RIGHT FLANGE SHAFT
- Locking Ring
- Replace
- Drain Plug
- 35 Nm
- Replace
- For oil filler hole
- Front Final Drive Cover
- Pay attention to the alignment sleeves
- Adjusting Shim
- Behind the taper roller bearing outer race
- Taper Roller Bearing Outer Race
- O-ring
- On the front final drive cover
- Removing and installing, refer to FRONT FINAL DRIVE COVER O-RING
- Differential
- Transmission
- Spring Pin
- Selector Shaft Lever
- Selector Shaft Seal
- Removing and installing, refer to SELECTOR SHAFT SEAL
- Left Flange Shaft
- Removing and installing, refer to LEFT FLANGE SHAFT
- Bolt
- 10 Nm plus an additional 45° turn
- Gear Carrier
- Use the circlip to attach together with the mount FRONT FINAL DRIVE OVERVIEW FRONT FINAL DRIVE OVERVIEW to the left flange shaft.
- Is identified together as the left flange shaft mounting bracket.
- Bearings
- For the left flange shaft
- Circlip
- For the left flange shaft mount
- Torque Converter Shaft Seal
- Removing and installing, refer to TORQUE CONVERTER SEAL, REMOVING AND INSTALLING
- Torque Converter
- Removing and installing, refer to TORQUE CONVERTER, REMOVING AND INSTALLING

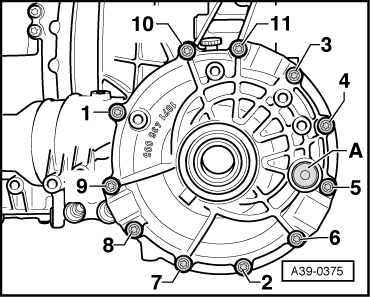

-- Tighten the bolts -1 and 2- to 3 Nm.
-- Tighten the bolts to 23 Nm in the following sequence: -1 through 11-.
