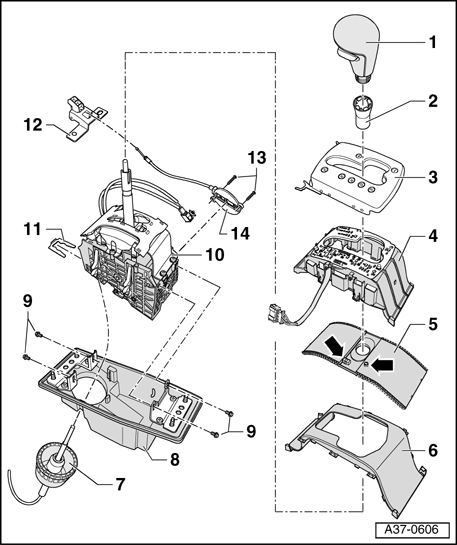

Shift mechanism, disassembling and assembling: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:
- Lubricate bearing areas and slide surfaces with polycarbamide grease G 052 142 A2 .
1 - Selector lever handle
- Removing and installing → Selector lever handle, removing and installing
2 - Sleeve
- Engages in selector lever knob
- Locks the removal of selector lever handle
3 - Cover plate
- With symbol panel
- To install, press onto frame
4 - Frame
- With circuit board
- Circuit board can be checked in "Guided Fault Finding" using the VAS 5051
- Tiptronic switch F189 is integrated in circuit board
5 - Cover strip
- With integrated magnets - arrows -
6 - Guide
- Guides cover strip
7 - Selector lever cable
- Do not bend or kink
- If rubber sleeves are damaged, selector lever cable must be replaced
- Checking and adjusting → Selector lever cable, checking and adjusting
- Removing and installing → Selector lever cable, removing and installing
8 - Cover for shift unit
- With bonded gasket
9 - Bolt
10 - Shift unit
- With Shift Lock Solenoid N110 and Transmission Park Selector Switch F305
- Can only be replaced as complete unit
- Removing and installing → Shift unit, removing and installing
11 - Locking clip
- For selector lever cable to shift unit
- Always replace
12 - Bracket
- With rocker switch for manual release
13 - Bolt -2 Nm
14 - Actuator mechanism for manual release
- Removing and installing Removing and installing, actuator mechanism for manual release
