Removing and installing, actuator mechanism for manual release
WARNING: This page is about a different variant/trim than selected.
- Shift unit is removed.

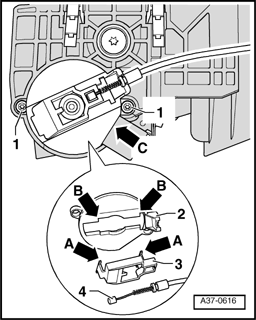

- Remove bolts - 1 -.
- Remove actuator mechanism.
- Assemble components of actuator mechanism as follows:
- Insert sliding bracket - 3 - with tabs - arrows A - into cut-outs - arrows B - of cover - 2 -.
- Clip end of bowden cable - 4 - into sliding bracket and bracket into cover.
- Secure actuator mechanism with the flat edge - arrow C - facing connecting wires on shift unit.
