Headliner, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
Note the additional safety precautions when working on the side curtain airbag. Refer to HEAD CURTAIN AIRBAG ADDITIONAL SAFETY PRECAUTIONS .

-- Remove the upper left and right A-pillar trim. Refer to UPPER A-PILLAR TRIM OVERVIEW .

-- Fold 2nd row backrests and, if present, 3rd row backrests forward.

-- Move the driver and passenger seat all the way forward.

-- Move the backrest of the driver and passenger seat as far back as possible.

-- Remove the left and right B-pillar trim. Refer to B-PILLAR TRIM OVERVIEW .

-- Remove the left and right C-pillar trim from the body. Refer to C-PILLAR TRIM OVERVIEW .

NOTE:

The C-pillar trim can be left hanging on the seat belt webbing.

To remove the C-pillar trim, the wheel housing trim must be removed from body.

In order to remove trim, belt webbing must be guided out from seat belt through trim. That is not necessary when removing trim.

-- Remove the roof panel trim. Refer to ROOF PANEL TRIM OVERVIEW .

-- Remove the left and right D-pillar trim. Refer to D-PILLAR TRIM OVERVIEW .

Refer to Removing .

Fig 1: Let T10039 Slide Along Between Sunroof Cover Frame -2- And Headliner -1- Until It Locates One Of The 15 Clips -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Clean Trim Release LeverT10039 to avoid soiling headliner.

-- Let Trim Release LeverT10039 slide along between sunroof cover frame -2- and headliner -1- until it locates one of the 15 clips -3-.

-- Release clips one after another with Trim Release LeverT10039 as shown in illustration direction of -arrow-.

All Vehicles:

-- Remove sun visors and sun visor center bearing. Refer to SUN VISOR OVERVIEW .

-- Open glasses compartment -1- and release center cover -2- and -3- interior light/reading light -arrow-.

Fig 2: Garage Door Opener Control Head E284

Courtesy of AUDI OF AMERICA, LLC

-- Release interior light/reading light diffusion lens -1- -arrow-.

Fig 3: Releasing Diffusion Lens For Interior/Reading Light

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

Fig 4: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Swing front interior light down and remove from roof trim.

-- Disconnect electrical connectors.

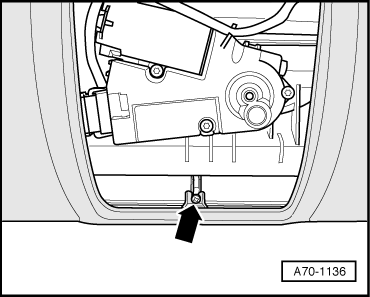

-- Remove screw -arrow- in interior lights/front reading lights roof opening.

Fig 5: Removing Screw In Front Interior Light/Reading Light Roof Opening

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pry Left Rear Interior Lamp -W47- /Right Rear Interior Lamp -W48- -1- and Rear Interior Lamp -W43- out of vehicle headliner opening with Trim Removal Wedge3409 -arrow-.

Fig 6: Prying Off Interior/Reading Light Out Of Headliner Opening Using Trim Removal Wedge 3409

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connector.

-- Remove front and rear roof grab handles. Refer to ROOF GRAB HANDLE, REMOVING AND INSTALLING .

-- Clean the lower left luggage compartment areas and upper right rear lid cut-out to avoid soiling the headliner. Tape off these areas or cover with foil if necessary.

NOTE:

Headliner must not be kinked; kinked headliner must be replaced.

2 technicians are needed to disconnect the last connections and remove headliner.

-- Remove assembly bridge/headliner screws -arrows- to body.

Fig 7: Remove Assembly Bridge/Headliner Screws

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the screen separator wall mount covers. The covers remain hanging from the screen separating wall mount and cannot be removed.

-- Lower the headliner on the left side of the vehicle and guide the screen separator wall covers through the openings in the headliner.

-- Carefully removed headliner through rear lid opening.
