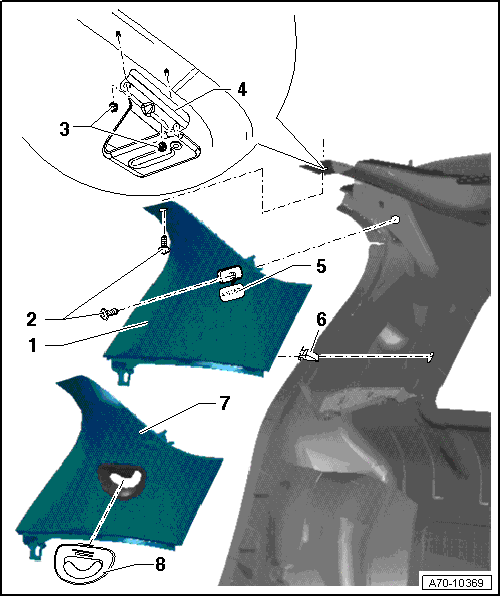

D-Pillar Trim Overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- D-Pillar Trim
- For vehicles without a seat belt on the D-pillar.
- Removing and Installing. Refer to D-PILLAR TRIM, REMOVING AND INSTALLING .
- Screw, Self-Locking
- 3 Nm
- Always replace if removed.
- Threaded screw holes must always be cleaned (for example, with thread cutter).
- Nut
- 3 Nm
- For bracket. Refer to -Item 3- D-PILLAR TRIM OVERVIEW to body.
- Bracket
- Cover
- With the Airbag symbol.
- Carefully unclip.
- Hangs from trim and cannot be detached.
- Clips
- Replace clamps if damaged or deformed.
- D-Pillar Trim
- For vehicles with seat belt on D-pillar.
- Removing and Installing. Refer to D-PILLAR TRIM, REMOVING AND INSTALLING .
- Belt Extraction Panel
- Clip in the D-pillar trim. Refer to -Item 7- D-PILLAR TRIM OVERVIEW.
- Removing and Installing. Refer to BELT EXTRACTION PANEL, REMOVING AND INSTALLING .
