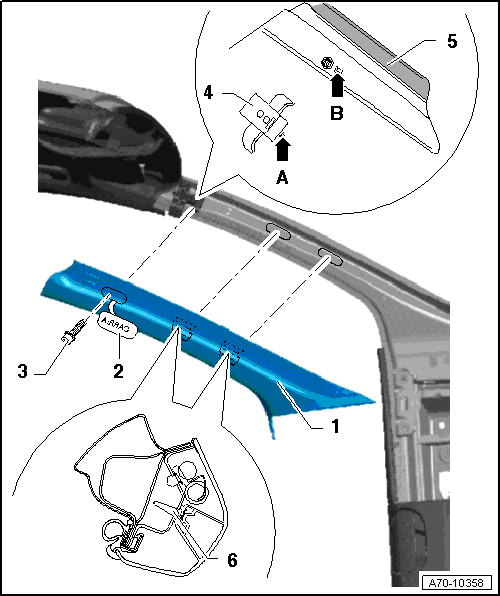

Upper A-Pillar Trim Overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
- Do not clamp the head curtain airbag when installing upper A-pillar trim -1-.
- A-Pillar Upper Trim
- Removing and Installing. Refer to A-PILLAR UPPER TRIM, REMOVING AND INSTALLING .
- Cover
- With the Airbag symbol.
- Carefully unclip.
- Hangs from trim and cannot be detached.
- Screw, Self-Locking
- 3 Nm
- Always replace if removed.
- Threaded screw holes must always be cleaned (for example, with thread cutter).
- Adapter
- Tab -arrow A- must be inserted in recess -arrow B- in body (A-pillar)
- Head Curtain Airbag
- Clips
- Quantity: 2
- Replace if damaged or deformed.
