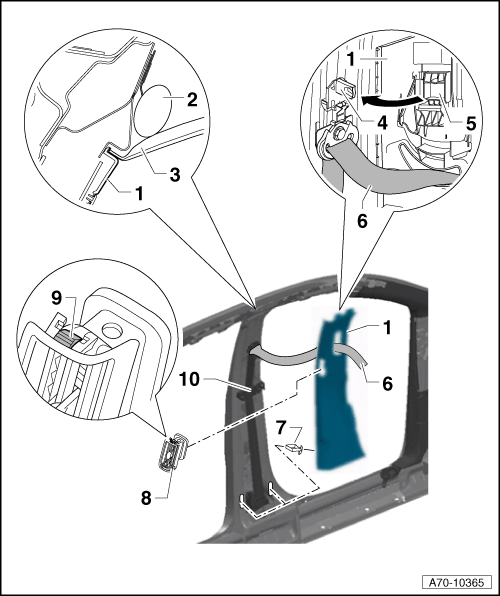

B-Pillar Trim Overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Follow all Safety Precautions when working with pyrotechnic components. Refer to PYROTECHNIC, ELECTRICAL AND MECHANICAL RESTRAINT SYSTEM COMPONENTS, SAFETY PRECAUTIONS AND TESTING PROCEDURES .
- Note the additional safety precautions when working on the side curtain airbag. Refer to HEAD CURTAIN AIRBAG ADDITIONAL SAFETY PRECAUTIONS .
- Do not clamp head curtain airbag -2- when installing B-pillar trim -1-.
- B-Pillar Trim
- Removing and Installing. Refer to B-PILLAR TRIM, REMOVING AND INSTALLING .
- Head Curtain Airbag
- Headliner
- Retaining Pin on the Seat Belt Height Adjuster
- Mount on the Sliding Piece of the B-Pillar Trim
- Seat Belt Webbing
- Clips
- Quantity: 2
- Replace if damaged or deformed.
- Vent
- Allocation. .
- Front Seat Belt Guide
- Spring Clip
- For vent. Refer to -Item 8- B-PILLAR TRIM OVERVIEW.
