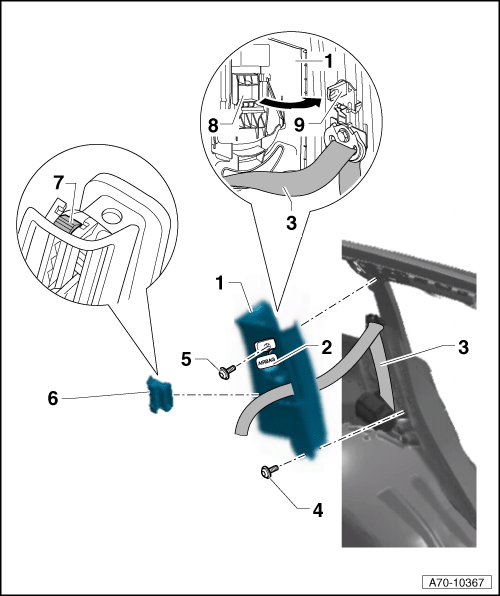

C-Pillar Trim Overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2015 Audi Q7, 2014 Audi Q7, 2013 Audi Q7, 2012 Audi Q7, and 2011 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- C-Pillar Trim
- Removing and Installing. Refer to C-PILLAR TRIM, REMOVING AND INSTALLING .
- Cover
- With the Airbag symbol.
- Carefully unclip.
- Hangs from trim and cannot be detached.
- Seat Belt
- Screw, Self-Locking
- 3 Nm
- Always replace if removed.
- Threaded screw holes must always be cleaned (for example, with thread cutter).
- Screw, Self-Locking
- 3 Nm
- Always replace if removed
- Threaded screw holes must always be cleaned (for example, with thread cutter).
- Vent
- Allocation. .
- Spring Clip
- For vent. Refer to -Item 6- C-PILLAR TRIM OVERVIEW.
- Mount on the Sliding Piece of the C-Pillar Trim
- Retaining Pin on the Seat Belt Height Adjuster
